WT10
10.1” Wall Mount Android PoE Tablet with NFC reader
● 10 Points Capacitive Touchscreen, Wide Visual Angle
● System: Android 8.1, 9.0
● Built-in POE 802.3at 48V Standard ( Optional RJ45/DC-In)
● Wall mount options: Surface VESA mount and Glass Wall Mount
● Integrated NFC Module (Optional)
● Full surround LED status with RGB color (optional)
Function
Introduction
The WT10 POE Android tablet supports high resolution 10.1inch IPS screen with a resolution of 1280×800 and a brightness intensity of 350 nits. The Android NFC tablet supports a built-in RJ45x1 port to connect to an Ethernet switch or directly to a PoE(802.3at switch via a CAT5 cable. The unit can also be powered on via DC 5V. The unit supports several optional features such as a front high-resolution camera & motion sensor.
Also the WT10 POE wall mounted tablet supports VESA 75×75 mounting and can be surface mounted on walls using any standard surface mount VESA wall mount plates.And the 10.1“ POE Android tablet with programmatically controlled LED Status bars that make it ideal for applications such as digital signage displays, meeting room booking & scheduling, hospital information displays, and home automation.
Cost-effective Tablet with multi interfaces

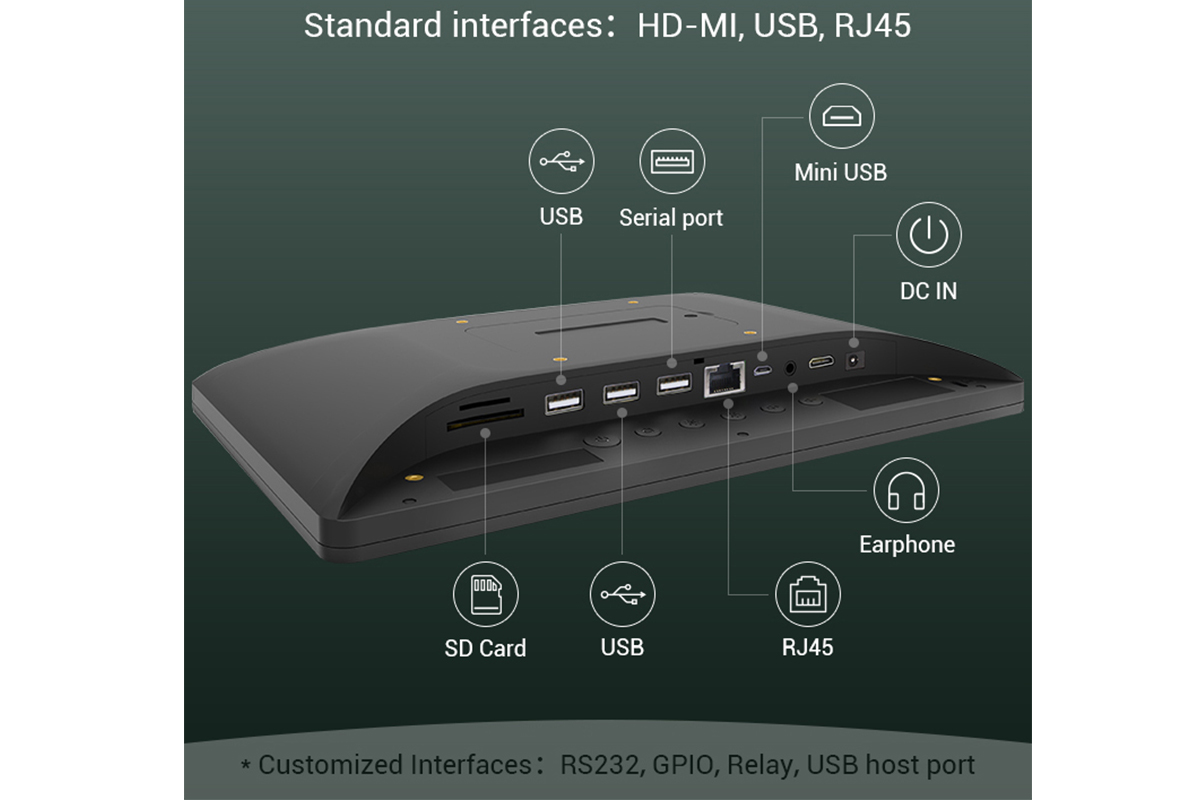

Powered by the Quad-core processor with 2GB of RAM and a 16GB flash, the WT10 POE android tablet supports customized operation system to provide a higher level of security .And the high performance wall mounted tablet comes standard with multiple data collection features, including USB ports, ethernet RJ45 port, serial RS-232 port, high-definition camera, HDMI port etc.
10.1 inch commercial-grade Display
A new android 8 android wall mounted tablet that features a 10.1" excellent display quality,long-lasting lifespan,and outstanding durability make it suitable for prolonged use in demanding environments .
NFC available for card reader writer
WT10 wall mounted android tablet with NFC reader supports ISO/IEC 18092 and ISO/IEC 21481 protocols near-filed communication and data transmission .It is high security ,fast and stable connectivity ,and low power consumption meet the requirements in user ID card authentication and card access control system .
Unique Power over ethernet Android tablet
The WT10 card access control android tablet supports Power over Ethernet for power supply ,making it an ideal choice for deployments in facilities or locations where it is difficult to reach power outlets without worrying about the battery loss.And the WT10 android NFC tablet without integrated battery ,resulting in a longer lifespan .It is specifically designed for continuous 24/7 usage in public spaces and can be powered directly from the mains or via POE.
| Operation System | |
| OS | Android 8 |
| CPU | RK3288 processor Quad-Core |
| Memory | 2 GB RAM / 16 GB Flash (3+32GB optional) |
| Languages support | English, Simplified Chinese, Traditional Chinese, Japanese,Spanish, German, French, Italian, Portuguese, Korean and multiple languages |
| Hardware specification | |
| Screen Size | 10.1 inch color (1280 x 800) display（13.3inch and 15.6inch is optional） |
| Brightness | 250cd/m2 |
| Camera | Front 2 megapixels |
| VESA | 75*75MM |
| Speaker | 2*3W |
| Symbologies | |
| NFC reader (Optional) | Support HF/NFC Frequency 13.56MhzSupport: ISO14443A/ISO14443B/ISO 15693/Mifare classic/Sony felica |
| RFID reader (Optional) | 125k,ISO/IEC 11784/11785,support EM4100，TK4100/GK4100，EM4305，T5577 |
| LED light bar (Optional) | Full surround LED status with RGB color ( Programmatically controlled) |
| Communication | |
| Bluetooth® | Bluetooth®4.0 |
| WLAN | Wireless LAN 802.11a/b/g/n/ |
| Ethernet | 100M/1000M |
| I/O Interfaces | |
| USB | USB host |
| Micro USB | Micro USB OTG |
| USB | USB for serial port (RS232 level) |
| RJ45 | Support POE function,IEEE802.3at,POE+,class 4, 25.5W |
| DC | DC power supply ,12V input |
| Expansion Slot | MicroSD, up to 64 GB |
| Audio | One speaker with Smart PA (95±3dB @ 10cm), One receiver, Dual noise-cancelling microphones |
| Enclosure | |
| Dimensions( W x H x D ) | 255mm*175mm*31mm |
| Weight | 650g |
| Environmental | |
| Operating temperature | -0°C to 40°C |
| Storage temperature | - 10°C to 50°C |
| Relative Humidity | 5% ~ 95% (Non-Condensing) |
| What comes in the box | |
| The standard package contents | WT10 android tablet Adaptor (Europe) |
