DP01

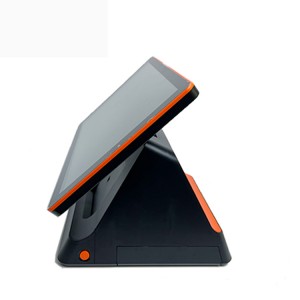

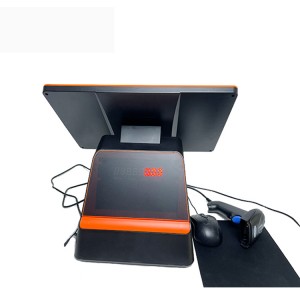

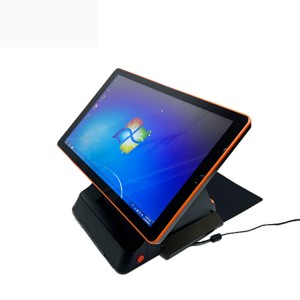

15.6 inch Desktop Windows POS System
● Windows OS
● Embedded 58mm high speed thermal printer optional
● Intel Celeron Bay Trail J1900 , intel core I3 / I5 optional
● 4+64 GB memory

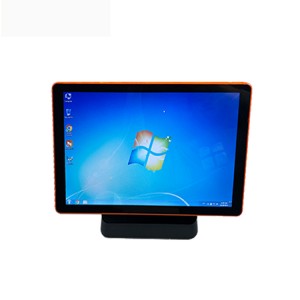

● 15.6” IPS LCD 1366X768, capacitive touch screen
● Abundant I/O interface for different demands
Function
Introduction
The DP01 Windows POS system is a top performance and multi-functional desktop POS terminal.
It can be easily connected to external accessories like cash drawers to create a hassle-free check-out experience for your clients.It is possible to match diversified business scenarios ranging from cashier, financial self-attendance, membership management, and etc. At the same time, it also widely used in supermarket, restaurant, street vendors, hotel, shopping mall, lottery and etc
Various Ports Enhanced Extensibility
Supports online payment by multi function card reader ;Built in 58mm high speed printer and automatic cutter ;Ports for RJ45*1, USB*6,RS 232*2 , earphones, and more .There is no doubt DP01 is a versatile and functional Desktop POS for businesses with complex needs.
Well-made POS hardware
Intel Celeron Bay Trail J1900 processor ,And core i3 and i5 is optional for higher performance .
Customized dual screen and touch screen options.High quality POS hardware ensures that the DP01 is always working at its best. Our upgraded DP01 touch screen windows POS system also comes with windows 7/8/10 OS and OEM service to provide greater performance.
Stable network Connectivity with RJ45
Besides stable Ethernet network, Wi-Fi and Bluetooth are also easy to access. Dp01 will performance perfectly in different environments no matter what kind of communication method you're using.
More possibility for personalize
Flexible customization to support second development ,different function modules is available based on customer’s requirements ,such as card reader ,printer ,barcode scanner and cash draw .
And the brand customization ,logo and color customization ,also the boot image could be provided for the OEM orders .
| Display | |
| Main Screen | 15.6 inch touch screen monitor |
| Resolution | 1366*768 ,250cd/m2 |
| View angle | Horizon: 150; Vertical :140 |
| Touch screen | Multi-point projected G+G capacitive touch |
| Customer display | 8 segment LED customer display |
| Performance | |
| Motherboard | Intel Celeron Bay Trail J1900 2.0GHz, or Intel Celeron J1800,intel core I3 / I5 CPU for option |
| System Memory | 1*SO-DIMM DDRIII slot, 4GB DDR3L/1333, 8GB for option |
| Storage device | Msata SSD 64GB or higer, up to 128 GB |
| Audio | On board Real Tek ALC662 |
| LAN | 10/100Mbs,Realtek RTL8188CE Lan chipbuilt in Mini PCI-E slot,support embedded WIFI module |
| Operating System | Windows7/8/10 |
| Options | |
| MSR | optional side MSR |
| Embedded thermal printer | 58/80mm Thermal printer |
| I/O Interfaces | |
|

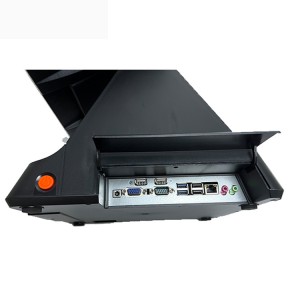

External I/O port
|
power button*1,12V DC in Jack*1 |
| LAN:RJ-45*1 | |
| USB*6 | |
| 15PIN D-sub VGA *1 | |
| RS 232*2 | |
| line out*1,MIC in*1 | |
| Package | |
| Weight | Net 6.5Kg, Gross 8.0Kg |
| Package with foam inside | 475mm x 280mm x 495mm |
| Environmental | |
| Operating temperature | 0 to 40 degrees centigrade |
| Storage temperature | -10 to 60 degrees centigrade |
| Working humidity | 10%~80% No condensation |
| Storage humidity | 10%~90% No condensation |
| What comes in the box | |
| Power adapter | 110-240V/50-60HZ AC power input ,DC12V/5A output adaptor |
| Power cable | Power cable plug compatible with USA /EU / UK etc and customized available |
