Q802
8inch Windows 10 Rugged Tablet PC
● Windows 10
● Intel Jasper Lake processor Celeron N5100
● IP65 Waterproof and Dustproof, MIL-STD-810G certified
● Enhanced rugged corners withstand shock and impact
● High speed communication as 2.4G/5.8G WIFI,4G LTE, BT4.2 and etc
● Thin & lightweight design for easy portability
● Optional high performance 2D imager designed to data capture
Function
Introduction
Take the slim but durable tablet with portability for your market. Powered by a Windows 10 OS, the Hosoton Q802 is an unique lightweight tablet at just 910g, 20 mm thick for easy to move, and fortified with a tough outer casing and an environmental seal. This Q802 rugged tablet is designed with decent performance and great durable features for field service, warehousing, manufacturing, logistics, and transportation.
Tailored Design for harsh working condition
Engineered to perform in any environment, Q802 is rugged enough to drop from 1.2 meters onto concrete. Moreover, it has IP68 certification, completely sealing durable housing against dust and moisture to withstand water jets. Also Q802 comply with sturdy MIL-STD-810G military standards, boasting shock resistance and anti-vibration.
Stable wireless Connectivity for outdoor operation
Equipped with 4G network, Wi-Fi 802.11 a/b/g/n/ac and Bluetooth 4.2, the rugged 8 inch tablet fulfills high reliability for filed workers to get connected anywhere and offers real-time data transfer. It is easy and fast to record in the workplace with 8-megapixel rear camera and 5-megapixel front camera.
Brilliant 8" Display with Sunlight Readable
Come with a sunlight-readable, high brightness (550 nits) display that responds to the touch commands even with gloves and support wet-touch mode. Moreover, high performance and low power consumption features with Intel® Celeron® Processor N5100 processor, allows users to run multiple programs and works smoothly.
Versatile Accessories for industries application
The Q802 is equipped with multiple I/O ports (RJ45 Ethernet Port, USB3.0 port, SIM Card Reader, Micro SD, RFID UHF, Replaceable DC jack, Docking connector) and a wide variety of accessories to fit different usage scenarios. Includes various docking solutions such as desktop cradle, vehicle docking station, as well as expansion module options (NFC and RFID Reader, fingerprint scanner ,Infrared barcode scanner). The Q802 tablet supports stylus for quick and accurate on-screen inputs. Beside for more comfortable carrying , Q802 also support Hand Strap that is easily accessible and also helps in avoiding accidental drops.
| Operation System | |
| OS | Windows 10 home/pro/iot |
| CPU | Intel Jasper Lake processor Celeron N5100 |
| Memory | 4 GB RAM / 64 GB Flash (6+128GB optional) |
| Languages support | English, Simplified Chinese, Traditional Chinese, Japanese,Spanish, German, French, Italian, Portuguese, Korean and multiple languages |
| Hardware specification | |
| Screen Size | 8 inch IPS screen, 1920×1200 TFT, 550nits |
| Touch Panel | Gorilla glass III with 5 points Capacitive Touch Screen |
| Buttons / Keypad | 5 Function Keys: Power key, volume +/-, home key, cutom key |
| Camera | Front 5 megapixels, rear 8 megapixels, with flash and auto focus function |
| Indicator Type | LED, Speaker, Vibrator |

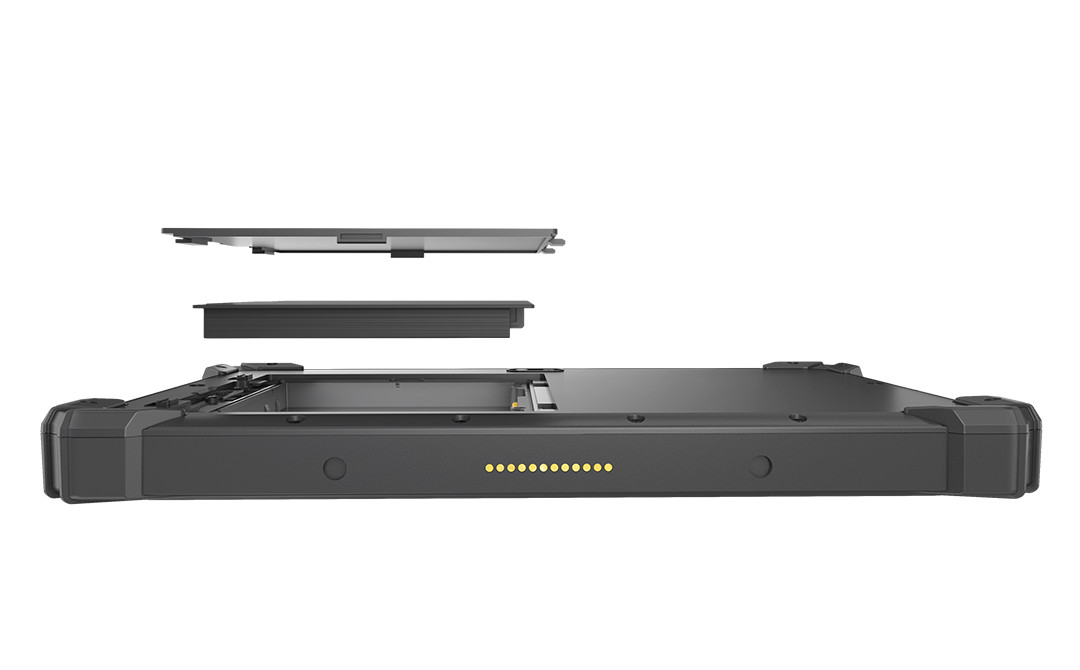

| Battery | Removable 5000mAh battery & New battery-free working mode |
| Symbologies | |
| HF RFID | Support HF/NFC Frequency 13.56MhzSupport: ISO 14443A&15693, NFC-IP1, NFC-IP2 |
| Bar code scanner | Optional |
| Communication | |
| Bluetooth® | Bluetooth®4.2 |
| WLAN | Wireless LAN 802.11a/b/g/n/ac, 2.4GHz and 5GHz Dual Frequency |
| WWAN | GSM: 850,900,1800,1900 MHz |
| WCDMA: 850/1900/2100MHz | |
| LTE:LTE FDD: B1/B3/B7/B8/B20，LTE-TDD: B40 | |
| GPS | GPS/BDS/Glonass, error range ± 5m |
| I/O Interfaces | |
| USB | USB 3.0 Type-A x 1, USB Type-C x 1, |
| POGO PIN | 12pins Pogo Pin x 1 |
| SIM Slot | SIM Card, TF Card (Three in one card holder) |
| Expansion Slot | MicroSD, up to 256 GB |
| Audio | Φ3.5mm standard earphone jack x 1 |
| RJ 45 | Optional |
| HDMI | *1 |
| Power | AC100V ~ 240V, 50Hz/60Hz, Output DC 19V/3.42A(Support power supply without battery adapter) |
| Enclosure | |
| Dimensions ( W x H x D ) | 236.7 x 155.7 x 20mm |
| Weight | 950g (with battery) |
| Durability | |
| Drop Specification | 1.2m, 1.5m with boot case ,MIL-STD 810G |
| Sealing | IP65 |
| Environmental | |
| Operating temperature | -20°C to 50°C |
| Storage temperature | - 20°C to 70°C (without battery) |
| Charging temperature | 0°C to 45°C |
| Relative Humidity | 5% ~ 95% (Non-Condensing) |
| What comes in the box | |
| The standard package contents | Q802 Device |
| USB Cable | |
| Adaptor (Europe) | |
| Optional Accessory | Hand Strap |
| Charging docking | |
| Vehicle cradle | |
| Car charge | |
| Shoulder Strap (Optional) | |
| Carry Bag (Optional) | |
Specially designed for field workers under tough working environment both indoors and outdoors. Good choice for fleet management ,warehousing, manufacturing, logistics industry etc.
