C4000
Handheld Android 11 Industrial Keyboard PDA scanner for warehouse
- Octa-core 2.0 GHz,cost-effective rugged PDA
- Android 11, GMS certified
- Built in Android NFC reader
- 4-inch Industrial capacitive screen
- Professional Infrared 1D/2D Barcode scanner
- internal light-transmitting industrial IMD keyboard (26 key Numeric with FN keys )
- Support PSAM encryption transmission
Function
Introduction
Hosoton C4000 Rugged PDA is a very competitive rugged handheld PDA which owns extremely powerful performance. Equipped with Android 11 OS and MTK octa core processor, it features a removable large capacity battery and vigorous performance configuration. As a multi-functional PDA terminal, C4000 features optional modules for barcode scanning, NFC, RFID,rear cameras, etc. The device can be deployed in a wide spectrum of industries, including logistics, warehousing, retail, asset tracking, etc., assisting users to optimize operation and management levels significantly.

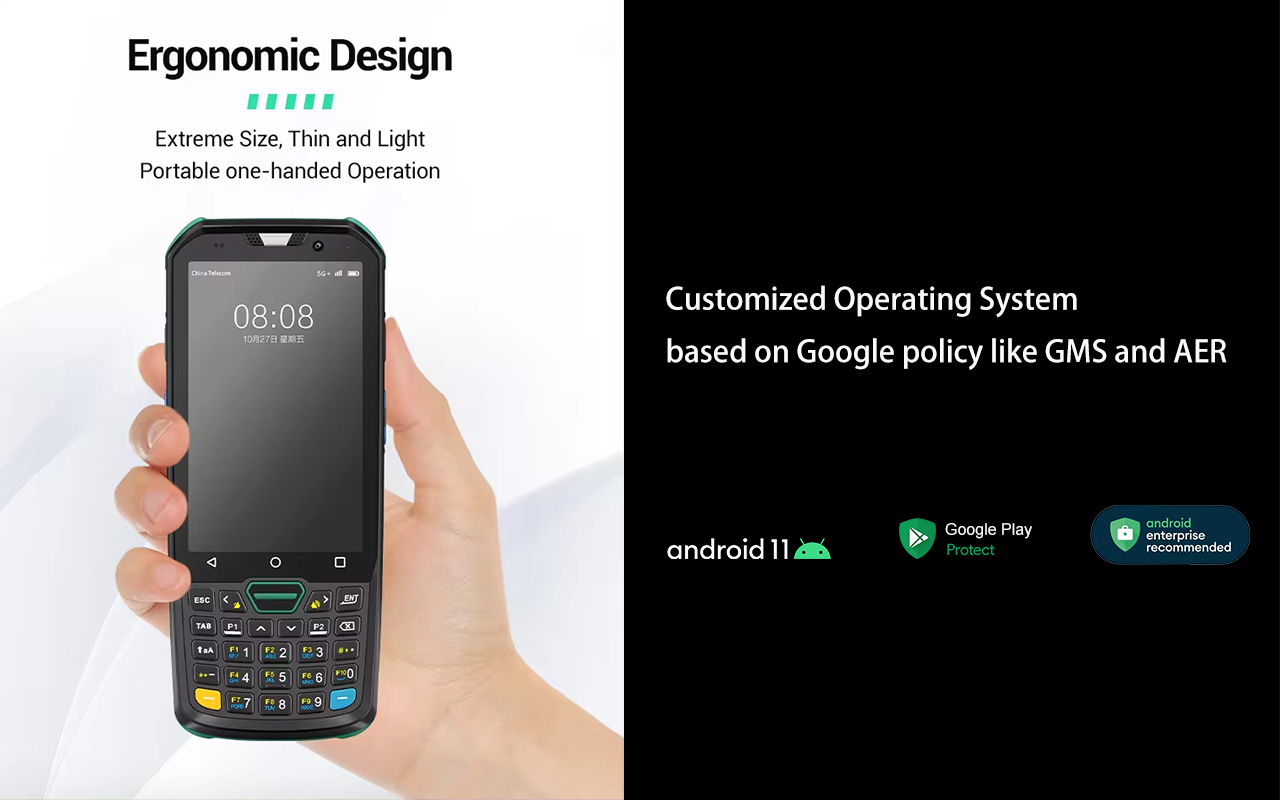

Compact structure delivers power and performance

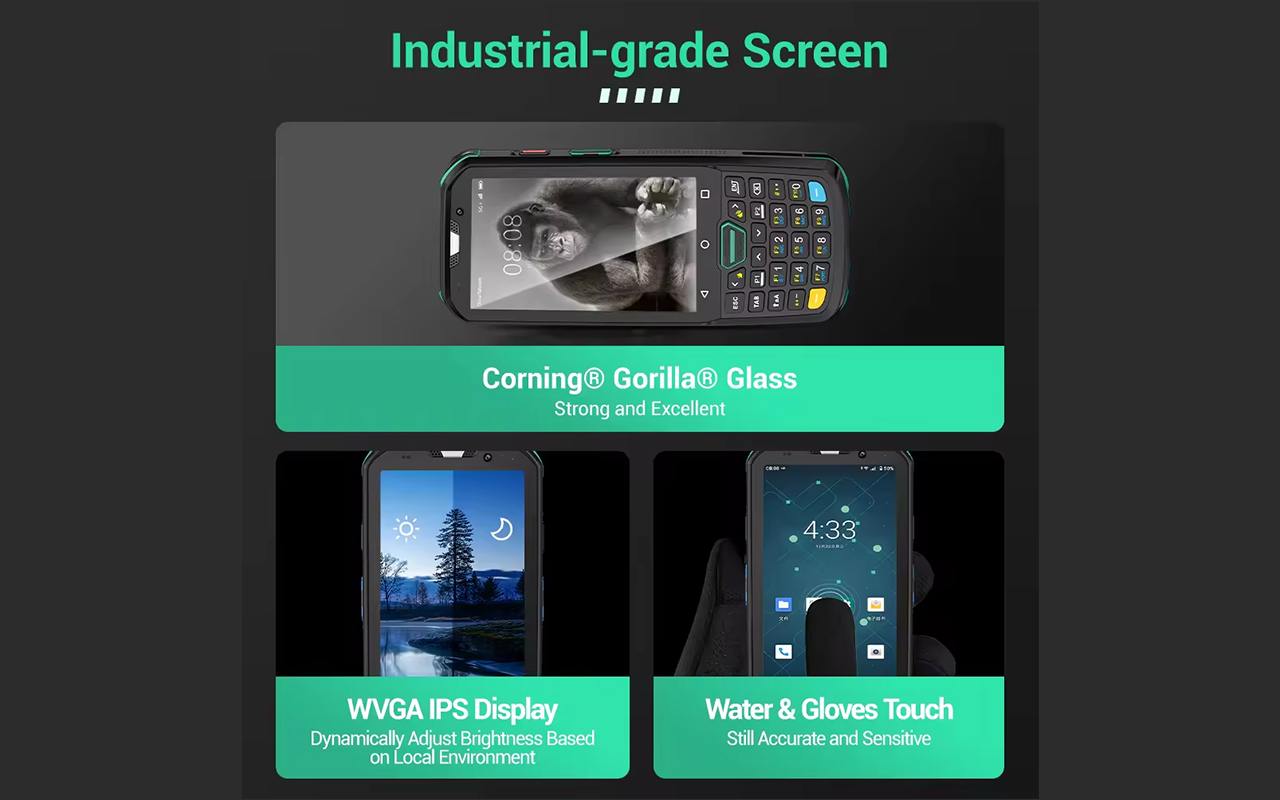

Compact, rugged, lightweight PDA at only 243g, powered by Android 11 and Octa core processor. Innovative high-integration architecture design, is made of high-strength materials, strong and tough; the size of the form is designed to be compact and suitable for one-handed grip, which feels more dexterous.With 4inch high definition sunlight viewable display, corning gorilla and GMS certifications, the C4000 is designed to work as hard as you do in any environment.

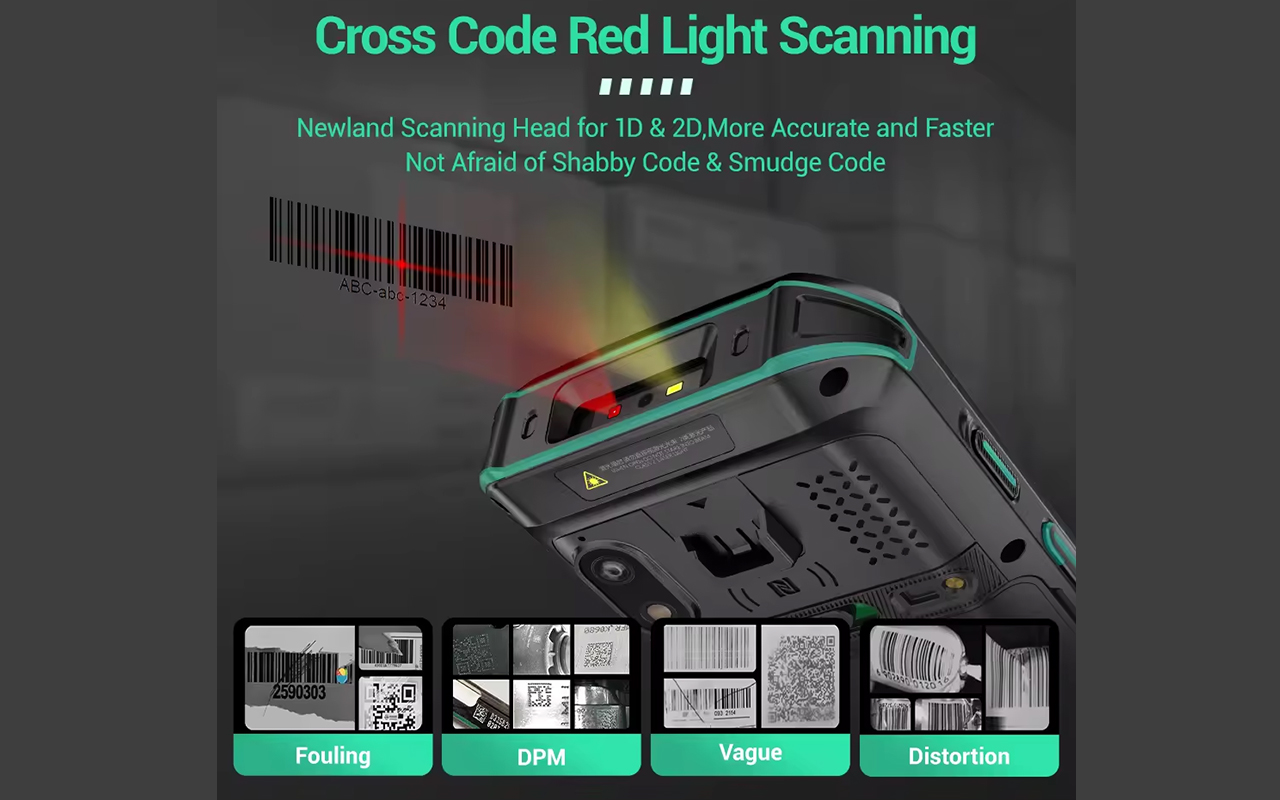

Industrial Scan Engine for efficient data collection
Professional industrial scanning engine, accurately and quickly identify one-dimensional code & two-dimensional code; 13 million pixel camera for recording anytime, support auto focus; with LED fill light, still available in dim light .Both engines work at the same time and the two cameras can scan barcode at long and short focal length seperately, double speed, double efficiency, and accurately read all types of 1D/2D barcode.

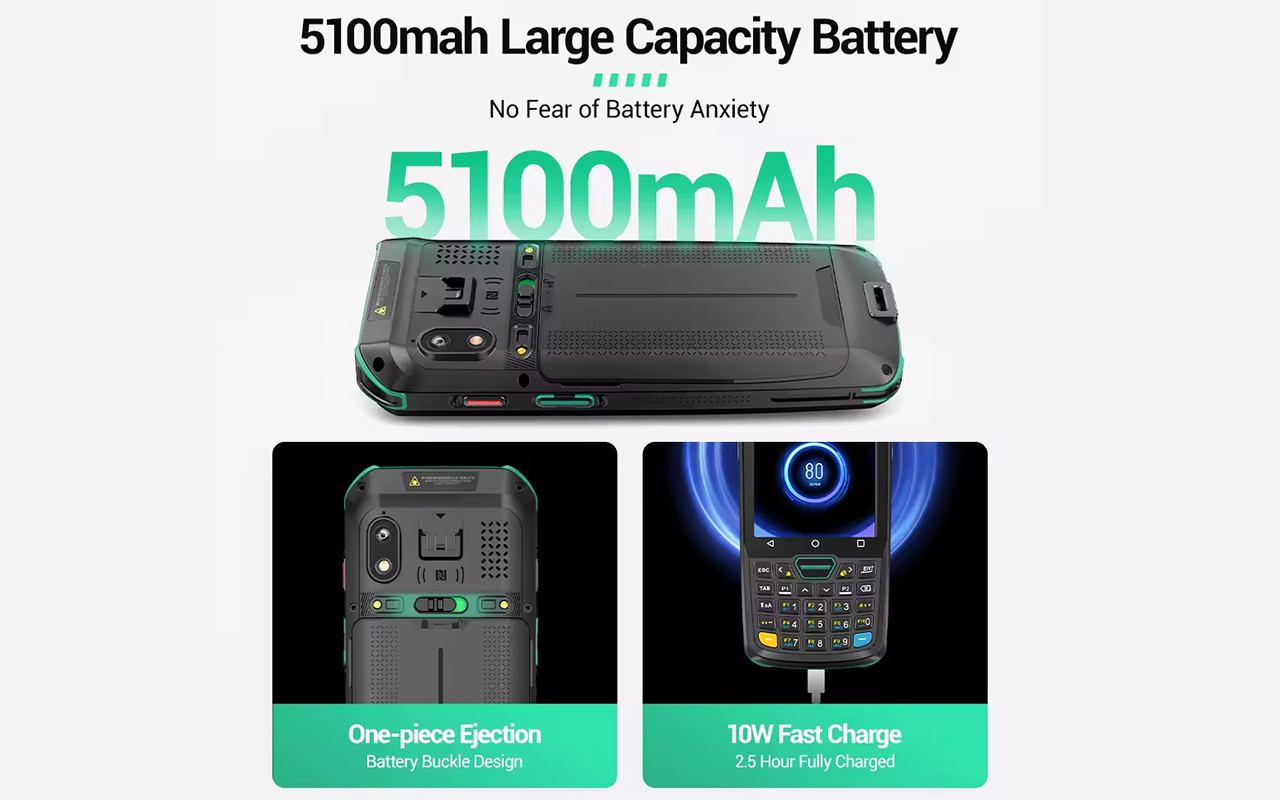

Large capacity battery withstands all-day work
Standard 5100mAh battery, USB direct charge and single-seat charge ;Support 3 hours of fast charging to meet more frequent shifts .Downtime means lost revenue, C4000 mini industrial PDA is designed for working hard through an entire shift, so your workforce can remain productive all day
Multiple wireless communication methods for real-time data transmission
Equipped with the fifth-generation Wi-Fi technology, the transmission rate increased by 300%; dual-frequency free switching transmission,stronger and more stable signal; supports remote and real-time transmission of massive business information.With two input methods, enterprise keyboard and on-screen keypad, you can flexibly choose physical keys and screen according to your work needs, and you can also realize the joint application of on-screen keys to achieve an efficient combined input application experience.
| Operation System | |
| OS | Android 11 |
| GMS certified | Support |
| CPU | 2.0GHz, MTK Octa-core Processor |
| Memory | 3 GB RAM / 32 GB Flash |
| Languages support | English, Simplified Chinese, Traditional Chinese, Japanese,Spanish, German, French, Italian, Portuguese, Korean and multiple languages |
| Hardware specification | |
| Screen Size | 4-inch, resolution: 800(H)×480(W) WVGA industrial-grade IPS display |
| Touch Panel | Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported |
| Buttons / Keypad | 26 key Numeric with FN keys, Supports on-screen keypad, side scan key *2
(internal light-transmitting industrial IMD keyboard) |
| Camera
|
5MP front +13MP Rear and Flash Light |
| Indicator Type | LED, Speaker, Vibrator |
| Battery | Lithium battery 3.85V, 5100mAh, removable |
| Symbologies | |
| 1D Barcodes | 1D : UPC/EAN/JAN, GS1 DataBar, Code 39, Code 128, Code 32, Code 93, Codabar/NW7, Interleaved 2 of 5, Matrix 2 of 5, MSI, Trioptic |
| 2D Barcodes | 2D  DF417, MicroPDF417, Composite, RSS TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, U PostNet, US Planet, UK Postal, Australia Postal, Japan Postal, Dutch Postal. etc |
| HF RFID | Support HF/NFC Frequency 13.56Mhz
Support: ISO 14443A&15693, NFC-IP1, NFC-IP2 |
| Communication | |
| Bluetooth® | Bluetooth 4.1 ,Bluetooth Low Energy (BLE);secondary Bluetooth BLE beacon for finding lost (powered off) devices |
| WLAN | Wi-Fi 802.11a/b/g/n/r/ac（2.4G+5G dual-band Wi-Fi）, fast roaming，5G PA |
| WWAN | 2G：B2/B3/B5/B8
3G：WCDMA：B1/B5/B8，CDMA BC0，TD-SCDMA：B34/B39 4G：FDD-LTE：B1/B3/B5/B7/B8/B20，TDD-LTE：B34/B38/B39/B40/B41 |
| GPS | GPS/AGPS/Beidou/Galileo/GLONASS/QZSS |
| Security and Encryption | WEP,WPA/WPA2-PSK,WAPI,WAPI-PSK
EAP:EAP-TLS,EAP-TTLS,PEAP-MSCHAPv2,PEAP-TLS,PEAP-GTC, PWD,SIM,AKA |
| I/O Interfaces | |
| USB | Type-C (with earphone function) *1 |
| POGO PIN | 2 Pin Rear connection：Trigger key signal
4 Pin Bottom connection：Charging port 5V/3A,Support USB communication and OTG mode |
| SIM Slot | Dual Nano SIM card |
| Expansion Slot | MicroSD, up to 256 GB |
| Audio | One speaker with Smart PA (95±3dB @ 10cm), One receiver, Dual noise-cancelling microphones |
| Enclosure | |
| Dimensions
( W x H x D ) |
160.5mm*67mm*17mm |
| Weight | 243g (with battery) |
| Durability | |
| Drop Specification | 1.5m concrete floor dropped several times |
| Sealing | IP67 |
| Environmental | |
| Operating temperature | -20°C to 50°C |
| Storage temperature | - 20°C to 70°C (without battery) |
| Charging temperature | 0°C to 45°C |
| Relative Humidity | 5% ~ 95% (Non-Condensing) |
| What comes in the box | |
| The standard package contents | Adapter Charger ×1、USB Type-C cable ×1、Rechargeable Battery ×1、Hand Strap×1 |
| Optional Accessory | 4-Slot battery Charger、Single-Slot Charge+USB/Ethernet、5-Slot Share-Cradle Charge+Ethernet、Snap on Trigger Handle、OTG Cable |
