H10P
Handheld Android POS Machine with printer
● Stable Android 14 programmable OS
● Embedded 58mm thermal printer ,both label & receipt printing
● NFC and QR Code payment methods
● 3GB RAM+32 GB flash memory
● 5.5” IPS LCD 1440 x 720 ，capacitive Five-Point Touch
● Long battery working time >8 hours
Function
Introduction
H10P is a non-EMV mobile POS printer based on Android 14,Equipped with the Octa core process CPU, it work as a cost-effective solution,delivering greater performance in ordering and sale. It takes an embedded 80mm/s fast thermal printer,support dual printing modes for ticket and label printing. The high capacity 7.7V/3000mAh battery ensures long-time working demand; detachable battery is convenient for recharging and continuous operations. With the e-commerce developing rapidly ,the mobile smart POS systems is widely applied in Queuing management, ordering, online order taking, checkout or loyalty management.
Applicable to Many More Scenarios

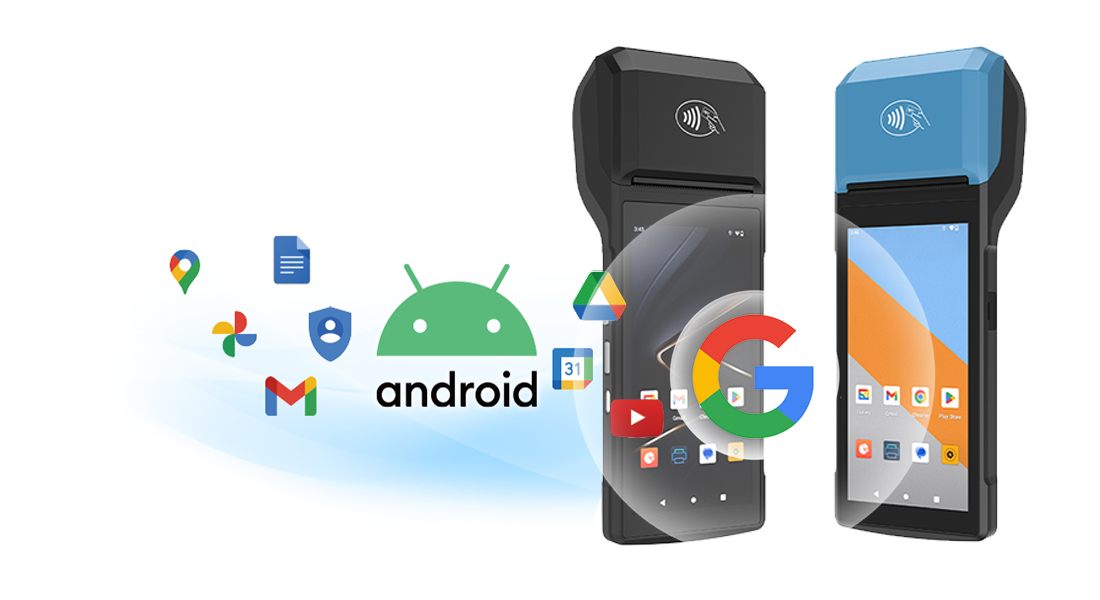

H10P is handheld Android POS device, which support a collection of Google applications including Google accounts, Google Play Store, Google Maps, Google Pay etc. This POS terminal deliver a great user experience with maximum software compatibility .Except the ticketing orders, H10P POS printer provide more possibilities with multi-functional modules ,such as laser barcode scanner ,fingerprint scanner and bigger flash memory ,which is required by banks ,government and law enforcement.

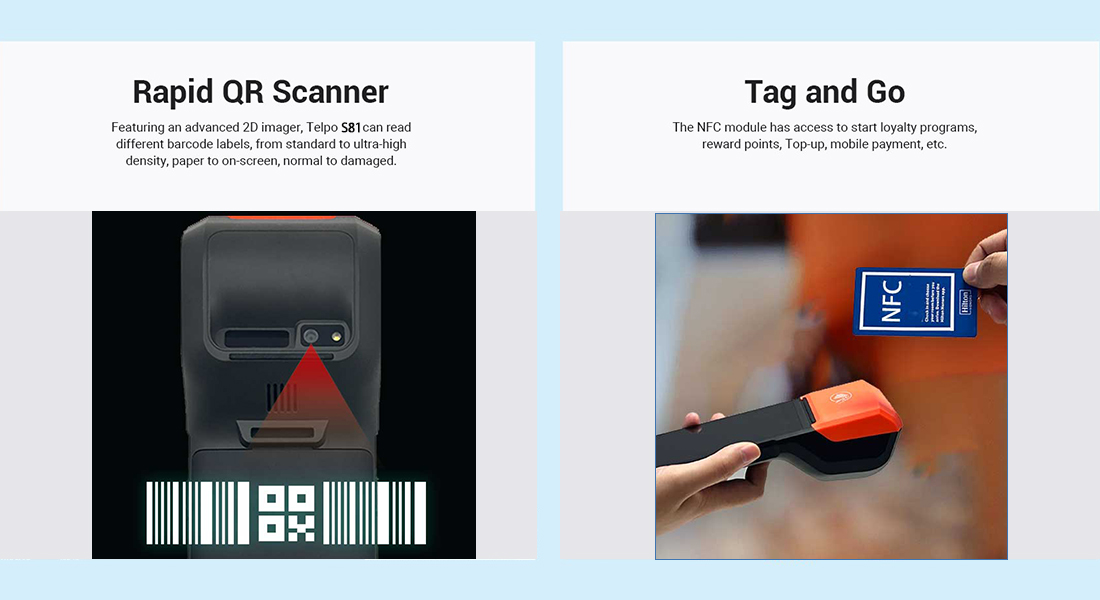

Fast QR-Code scanning experience
Professional laser 2D scan engine is optional , which could capture 1D/2D barcodes even if scratched, folded or stained.Tailored POS printer for the pioneer mobile ticketing, It delivers efficient and simplified operation experience for various vertical applications ,includes the retail, restaurants, supermarket, and delivery food .

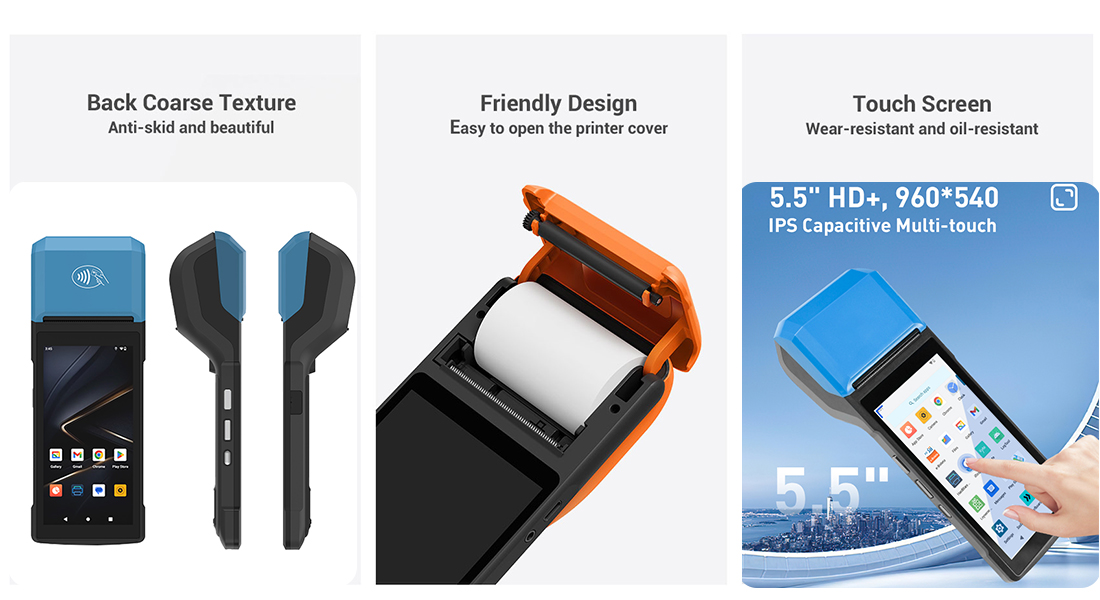

Advanced ergonomic design for mobile business
Dual printing modes for receipt and label printing, with advanced label position auto-detection algorithm for a more stable printing. Built-in high speed printer head helps improve work efficiency ,support 40mm diameter larger paper capacity .The security PSAM module card slot,protected by a dedicated cover is also optional to comply with certain fiscal regulations.

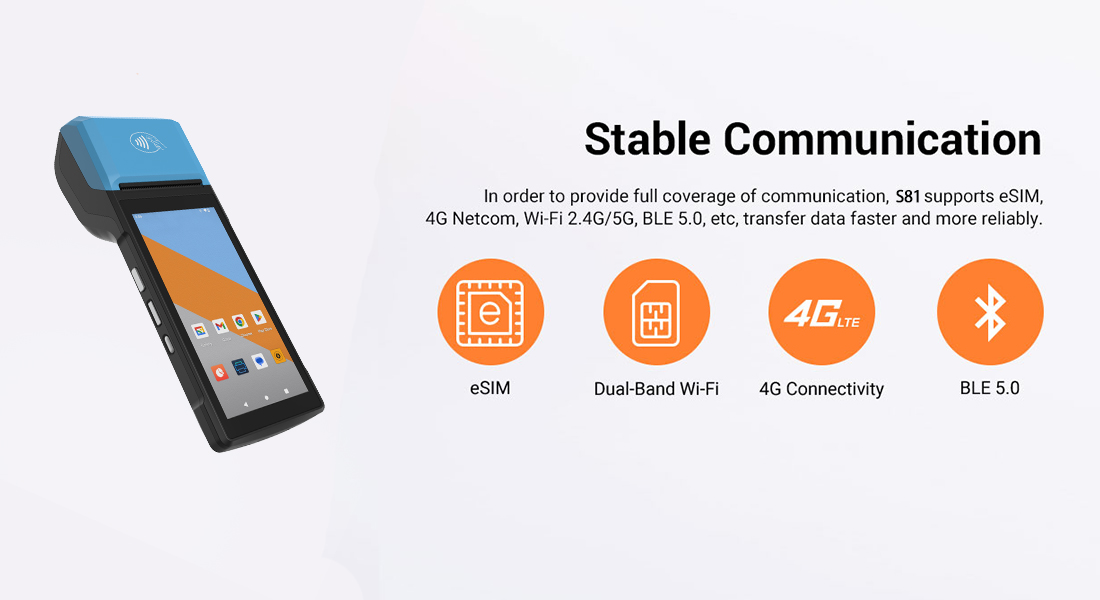

The Full range of wireless Connectivity
Besides stable SIM slots and PSAM network, Dual bands Wi-Fi and Bluetooth are also easy to access. H10P will performance perfectly in different working environments ,no matter what kind of communication method you prefer to.
Born for digital service
Digital transformation of enterprise is increasingly important, H10P delivers a new experience in a variety of consuming scenarios, such as online food ordering QR code payment, ticket checking, queuing, mobile top-up, utilities, lotteries, parking charges, etc .
High voltage battery for whole day work

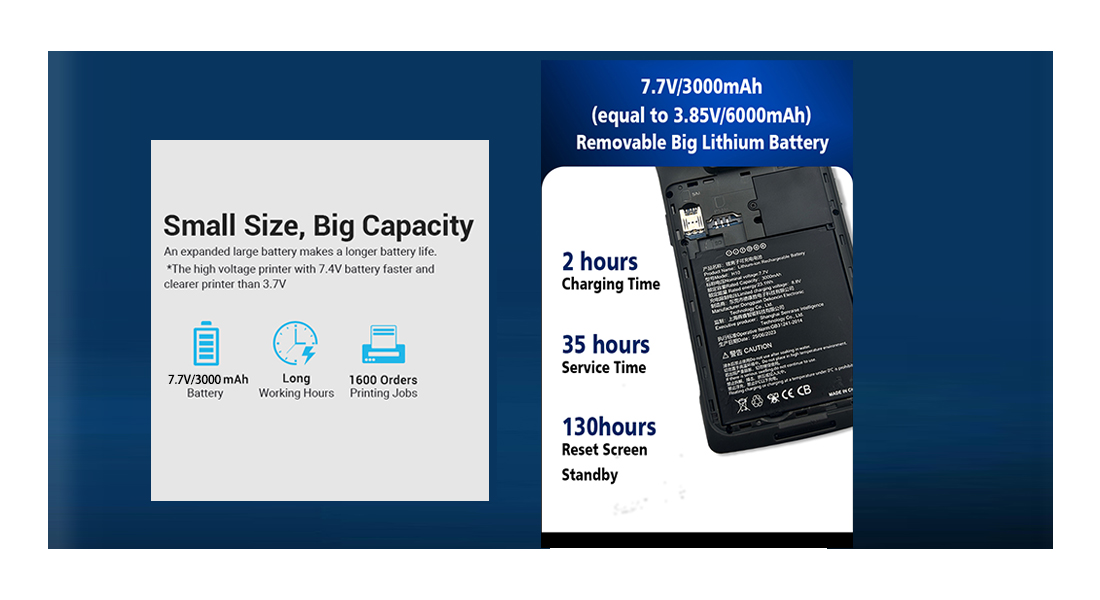

Big capacity 7.7V/3000mAh removable battery ensures long-time outdoor operations; detachable battery is convenient and fast for you to replace it.Continuously work for 10 hours even in most demanding situations, and still print receipts at high speed when the battery is low.
| Operation System | |
| OS | Android 14 OS with GMS certified |
| GMS certified | Support |
| CPU | Octa core processor ，up to 2.0 Ghz |
| Memory | 3GB ROM+32GB Flash |
| Languages support | English, Simplified Chinese, Traditional Chinese, Japanese,Spanish, German, French, Italian, Portuguese, Korean and multiple languages |
| Hardware specification | |
| Screen Size | 5.5″ IPS Display, 1440×720 pixels ,multi-point Capacitive Touch screen |
| Buttons / Keypad | ON/OFF button ,Scan button |
| Card readers | Contactless Card , Support ISO / IEC 14443 A&B，Mifare，felica card conform to EMV / PBOC PAYPASS standard |
| Camera | rear 5 megapixels, with flash and auto focus function |
| Printer | Built in fast-speed thermal printerPaper roll diameter: 40mmPaper width: 58mm |
| Indicator Type | LED, Speaker, Vibrator |
| Battery | 7.7V, 3000mAh ,Rechargable Lithium battery |
| Symbologies | |
| Bar code scanner | 1D 2D code scanner via camera ,laser barcode scanner optional |
| Fingerprint | Optional |
| Communication | |
| Bluetooth® | Bluetooth®5.0 |
| WLAN | Wireless LAN 802.11a/b/g/n/ac, 2.4GHz and 5GHz Dual Frequency |
| WWAN | GSM: 850,900,1800,1900 MHzWCDMA: 850/1900/2100MHzLTE: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20TDD-LTE :B38/B39/B40/B41 |
| GPS | A-GPS, GNSS, BeiDou satellite navigation |
| I/O Interfaces | |
| USB | USB type-C *1 |
| POGO PIN | Pogo Pin bottom: Charging via cradle |
| SIM Slot | SIM Slot *1 & PSAM *1 |
| Enclosure | |
| Dimensions( W x H x D ) | 219mm x 80mm x 17.9mm |
| Weight | 380g (with battery) |
| Durability | |
| Drop Specification | 1.2m |
| Sealing | IP54 |
| Environmental | |
| Operating temperature | -20°C to 50°C |
| Storage temperature | - 20°C to 70°C (without battery) |
| Charging temperature | 0°C to 45°C |
| Relative Humidity | 5% ~ 95% (Non-Condensing) |
| What comes in the box | |
| The standard package contents | S81 TerminalUSB Cable (Type C)Adaptor (Europe)Printing paper |
| Optional Accessory | Hand StrapCharging dockingSilicon case |
