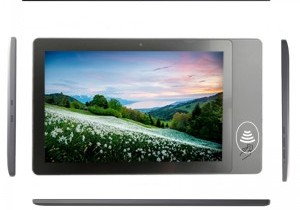

H101

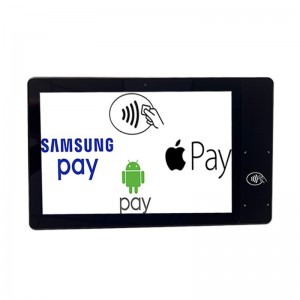

Industrial Android 14 Contactless Payment Tablet With Front NFC Reader
● 10.1inch very compact android tablet
● 1200*1920 FHD Display, Capacitive multi-touch
● Built-in WiFi, 4G LTE, BT 4.2 and GPS
● Long-lasting embedded 8000mAh battery
● 5.0 MP front and 13.0 MP Rear Camera (with Dual LED auxiliary light, Auto Focus)
● 4 GB RAM + 64 GB eMMC
● Android™ 14OS with google certification
● Integrated fingerprint scanner (Optional)
● Integrated NFC Module (Optional)
Function
Introduction
The H101 Android Rugged Tablet is built for mobile working environments in industries like Self banking service, insurance and securities, online education, and more. With this powerful octa cores processor, this tablet will allow you to reliably run business essential applications and tasks. The high bright FHD display, drop and shock-proof metal housing, and advanced connectivity options like 4G LTE and GPS, makes it possible to take this tablet anywhere. An expansion slot allows for standard or custom modules, such as a Biometric fingerprint reader, NFC reader module, IC Card Reader, Numeric keypad, and more. The H101 is GMS certified with Android 9 for European markets.
Intelligently high performance Tablet
Featuring superior document scanning technology, it ensures read reliability for mobile phone screens and paper in any orientation. Powered by the MTK 2.3GHz Octa-core processor with 4GB of RAM and a 64GB flash, the H101 also supports customized operation system to provide a higher level of security.
10.1inch FHD Sunlight Readable Display
Bring the durability to new heights with Hosoton H101, a new android 14 metal housing tablet that features a 10.1" sunlight readable, high brightness display and it responds the touch commands even with your gloves or water drops on the screen.
8000mAh High Capacity Battery
Equipped with a high capacity 8000mAh all-day battery life to helps filed workers to operate a long time, the H101 also come with power saving working mode design that minimizes downtime and helps to optimize the workflow of the business.
Various Accessories for Extensions

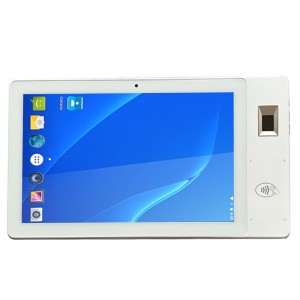

The H101 tablet is an extremely scalable product as the 14-pin POGO connector allows users to add values to your device by extending various accessories on hand. Adding the fingerprint scanner, users can capture and verify the biometric data easily. It gives the flexibility to enhanced your business and advantage whenever in different scenarios.
| Operation System | |
| OS | Android 14 with google certification |
| CPU | 2.0 Ghz,MTK8788 processor Deca-Core |
| Memory | 4 GB RAM / 64 GB Flash (6+128GB optional) |
| Languages support | English, Simplified Chinese, Traditional Chinese, Japanese,Spanish, German, French, Italian, Portuguese, Korean and multiple languages |
| Hardware specification | |
| Screen Size | 10.1 inch color (1280*800 or 1920 x 1200)LCD display |
| Buttons / Keypad | 8 Function Keys: Power key, volume +/-, return key, home key, menu key . |
| Camera | Front 5 megapixels , rear 13 megapixels, with dual flash and auto focus function |
| Indicator Type | LED, Speaker, Vibrator |
| Battery | Rechargeable li-ion polymer, 8000mAh |
| Symbologies | |
| Scanner | Document and barcode scan via CAMERA |
| HF RFID(Optional) | Support HF/NFC Frequency 13.56MhzSupport: ISO 14443A&15693, NFC-IP1, NFC-IP2 |
| Fingerprint module (Optional) | Spatial resolution :508 DPIActive sensor area :12.8mm*18.0mm (In compliance with FBI，STQC) |
| Communication | |
| Bluetooth® | Bluetooth®4.2 |
| WLAN | Wireless LAN 802.11a/b/g/n/ac, 2.4GHz and 5GHz Dual Frequency |
| WWAN | GSM: 850,900,1800,1900 MHzWCDMA: 850/1900/2100MHzLTE:FDD-LTE B1,B3,B7,B20 |
| GPS | GPS (AGPs), Beidou navigation |
| I/O Interfaces | |
| USB | USB type-C |
| SIM Slot | Dual nano SIM Slot |
| Expansion Slot | MicroSD, up to 256 GB |
| Audio | One speaker with Smart PA (95±3dB @ 10cm), One receiver, Dual noise-cancelling microphones |
| Enclosure | |
| Dimensions ( W x H x D ) | 251mm*163mm*9.0mm |
| Weight | 550g (with battery) |
| Durability | |
| Drop Specification | 1.2m |
| Sealing | IP54 |
| Environmental | |
| Operating temperature | -20°C to 50°C |
| Storage temperature | - 20°C to 70°C (without battery) |
| Charging temperature | 0°C to 45°C |
| Relative Humidity | 5% ~ 95% (Non-Condensing) |
| What comes in the box | |
| The standard package contents | H101 android tablet USB Cable (Type C)Adaptor (Europe) |
| Optional Accessory | Portable Protect case |
Designed for highly mobile field workers both indoors and outdoors. Tailored solution for digital Banking, mobile insurance service, online class, and utility industry.
