M90

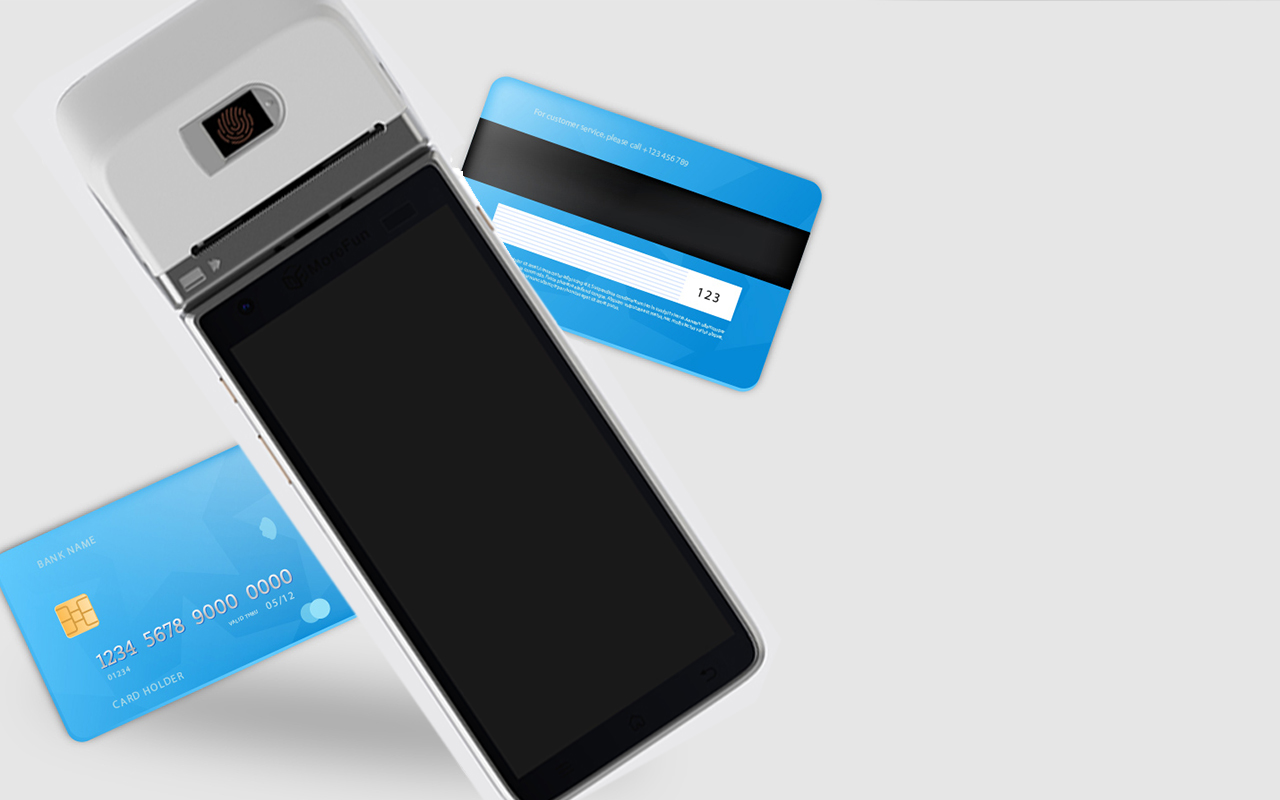

Mobile Android Payment POS terminal with bank card reader
• Android 13 with Quad-core processor + Secure CPU
• Magstripe, chip card, NFC ,QR code payment
• 5.99inch touch screen with 1440*720 resolution
• High speed barcode scanner optional
• Long battery working time & fast charging
• PCl &EMV approved
Function
Introduction
Impeccable quality and unique design make M90 become next generation smart pos. It delivers strong performance through the Android 10 OS and high-speed processor, and integrated with MSR, EMV chip & pin,NFC card readers, embedded 2D barcode scanning engine, 4G/WiFi/Bluetooth connectivities, makes the payment faster and more convenient for merchants .Besides ,the innovative design combines the arts and pioneer protection technology, enables rich use cases such as ECR, loyalty, parcel delivery, top up or location-based services.
Tailored industrial design for all kinds of payment environments
This slim and sleek Android-based device accepts all EMV-based contact, contactless and QR code payment methods to harness maximum flexibility .Engineered to work in outdoors or indoors, M90 is rugged enough to drop from 1.2 meters and adopt sunlight viewable display.It can improve service quality of various vertical applications within the retail, merchants, bank, and field service industries.

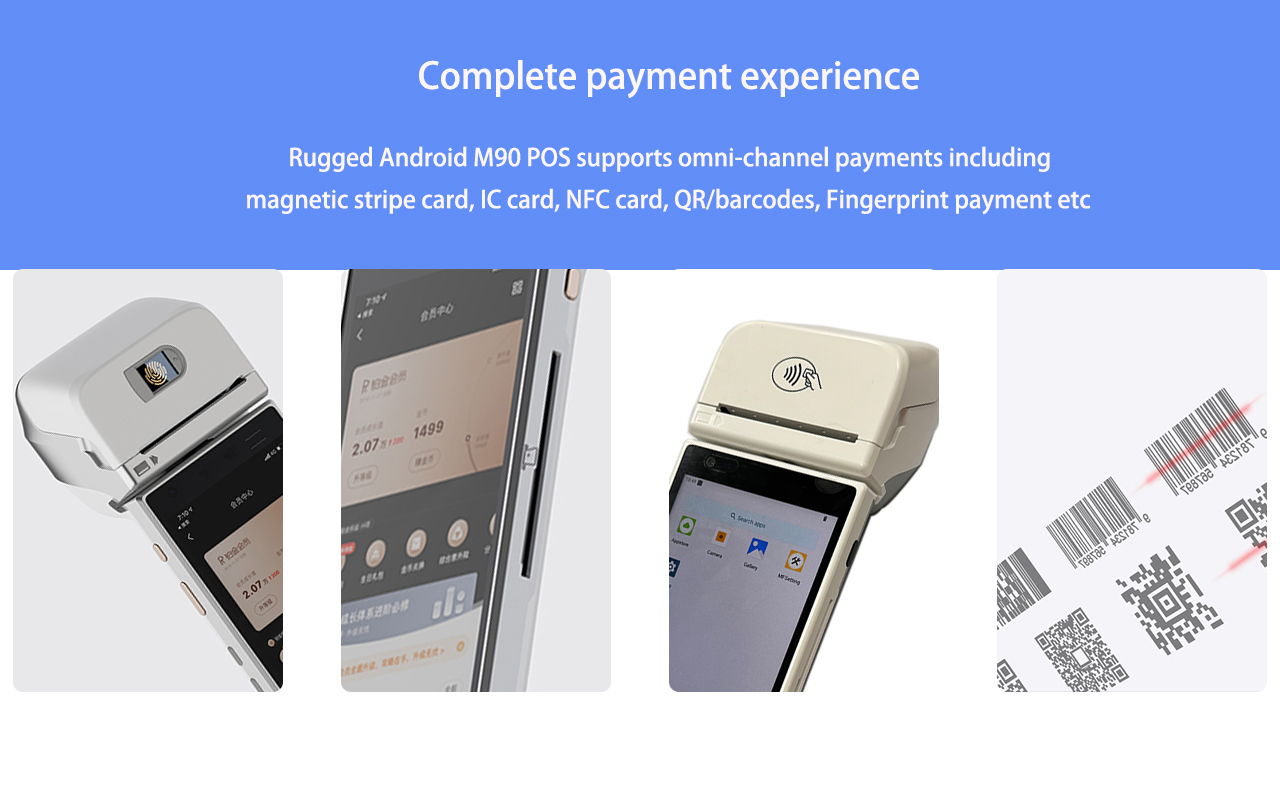

Make payments simple and fast for merchants
M90 mobile POS system supports all kinds of bank cards payment ,and covering main electronic payment methods such as NFC Payment, Apple Pay, Samsung Pay, Alipay, WeChat Pay, and Quick Pass. And this all-on-one scanner kit allow efficient 1D/2D product barcode scanning process, M90 smart Pos Terminal is the ideal credit card machine for business.

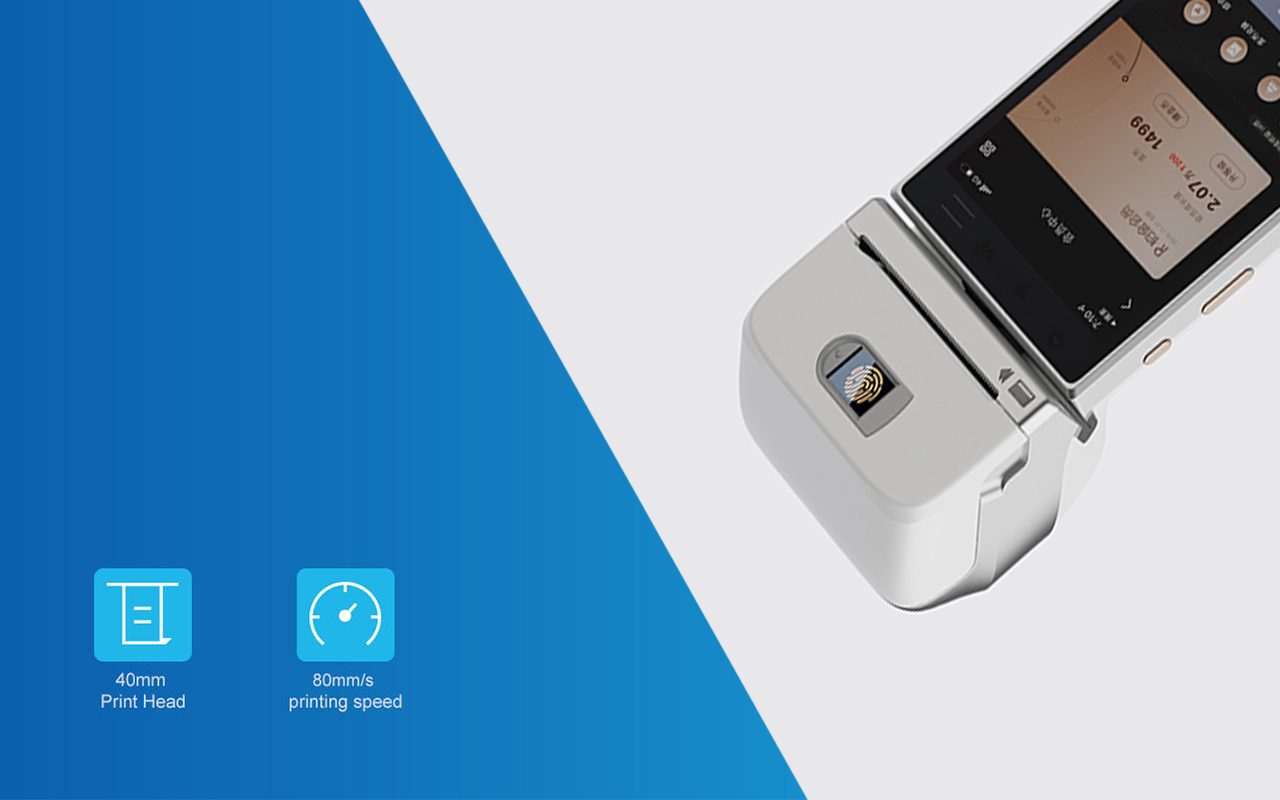

Embedded high Speed Thermal Printer for ticketing
Advanced high-pressure printing technology is applied to the thermal printer of M90, printed text and graphics are clearer. The printing speed is increased to 70 mm per second,which makes the transaction more smoothly.
Powerful optimized power system
With a 5000-mAh large-capacity removable battery and an intelligent power management system, M90 can continuous working up to 8-10h in daily conditions, large-capacity battery of this portable card payment POS machine ensures a long service time and supports transactions at any time.
| Operation System | |
| OS | Android 13 OS |
| CPU | Qualcomm quad core processor with special secure CPU |
| Memory | 1 GB RAM / 8 GB Flash (2+16GB optional) |
| Languages support | English, Simplified Chinese, Traditional Chinese, Japanese,Spanish, German, French, Italian, Portuguese, Korean and multiple languages |
| Hardware specification | |
| Screen Size | 5.99″ IPS Display, 1440×720 pixels ,multi-point Capacitive Touchscreen |
| Buttons / Keypad | 1*power button,1*VOL+/VOL-, 1*function key |
| Card readers | Magstripe Card ,Contact chip Card ,Contactless Card |
| Camera | 0.3MP front camera ,rear 5 megapixels with flash and auto focus functionSupport 1D/2D code payment |
| Printer | Built in fast-speed thermal printerPaper roll diameter: 40mmPaper width: 58mm |
| Indicator Type | LED, Speaker, Vibrator |
| Battery | 7.4V, 2*2500mAh (equal to3.7V/5000mAh) ,Removable Lithium battery |
| Symbologies | |
| Bar code scanner (optional) | Zebra barcode scan module |
| Fingerprint | Optional |
| Communication | |
| Bluetooth® | Bluetooth®4.2 |
| WLAN | Wireless LAN 802.11a/b/g/n/ac, 2.4GHz |
| WWAN | 4G/3G/2G |
| GPS | A-GPS, GNSS, BeiDou satellite navigation |
| I/O Interfaces | |
| USB | 2 *TYPE-C port (1 for charging ,1 for charging & communication) |
| POGO PIN | Pogo Pin bottom: Charging via cradle |
| SIM Slot | SIM*2 ,PSAM *1 or SIM*1 ,SAM*2 |
| Expansion Slot | Micro SD, up to 128 GB |
| Enclosure | |
| Dimensions( W x H x D ) | 254 x 82.7 x 52.9 mm |
| Weight | 450g (with battery) |
| Durability | |
| Drop Specification | 1.2m |
| Certification | PCI PTS 5.x, PCI P2PE, EMV L1&L2, EMV CL L1, Mastercard Paypass, Visa Paywave, Union Pay QuickPass, Mastercard TQM, FCC, CE |
| Environmental | |
| Operating temperature | -20°C to 50°C |
| Storage temperature | - 20°C to 70°C (without battery) |
| Charging temperature | 0°C to 45°C |
| Relative Humidity | 5% ~ 95% (Non-Condensing) |
| What comes in the box | |
| The standard package contents | M90 TerminalUSB Cable (Type C)Adaptor (Europe)Lithium Polymer BatteryPrinting paper |
| Optional Accessory | Hand StrapCharging docking |
