C5000
New arrival 5.5 inch Rugged Android PDA scanner for logistic industry
- Octa-core 2.0 GHz, Rugged handheld computer
- 5.5inch 720 x1440 Panel and industrial-grade IPS display
- Infrared 1D/2D Barcode Reader for data collection
- IP65 waterproof and dustproof
- Android 11, GMS available
- Long-lasting removable 5000mAh battery (Up to 16 hours working time)
- Support Bluetooth 4.1,BLE mode / dual-band WLAN, fast roaming / 4G LTE
Function
Introduction
The Hosoton C5000 is a 5.5-inch rugged mobile PDA offering 80% screen to body ratio, featuring versatile functionality with powerful data collection. Specially designed for portability and stability, the C5 is combined with a compact and durable structure design ,which makes it an ideal tool to increase higher efficiency for applications in the retail, logistic ,warehousing and light-duty Field Service.And C5 has IP68 Sealing and is 1.5 m drop to concrete. It performs well in a wide range of environment temperature with anti-collision ,anti-vibration and dust-proof design.

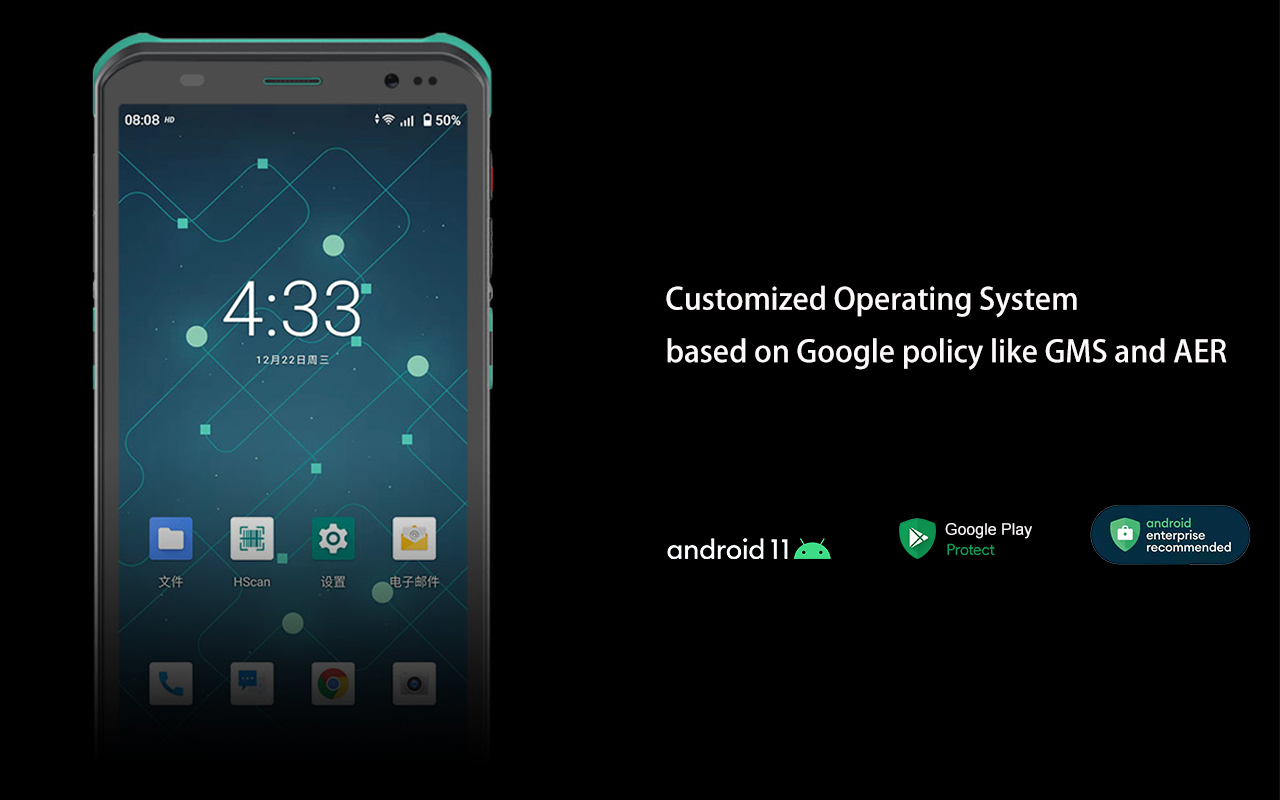

Powered by Android 11 OS with GMS
Advanced Octa-core CPU (2.0 GHz) with 3 GB RAM / 32 GB Flash (4+64 GB optional) and security OS specially customized for enterprise-level scenarios, is fully upgraded in efficiency and experience; enterprise-level equipment cloud management platform HMS provides professional equipment management, application and monitoring, and supports privatized deployment.

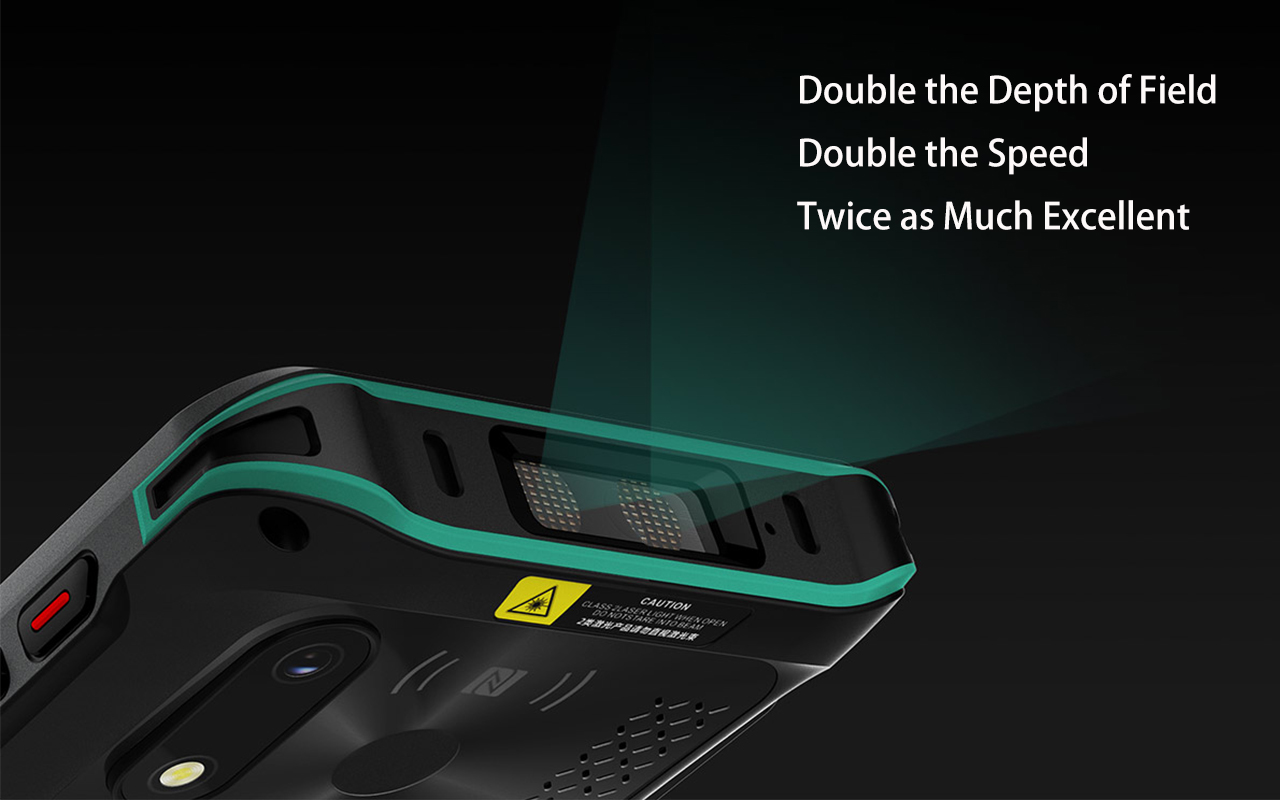

High Performance laser barcode Scanner for data collection
Hosoton C5000 is equipped with Mindeo ME5066 Scan Engine ,dual-engines and dual-cameras. Both engines work at the same time and the two cameras can scan barcode at long and short focal length seperately, double speed, double efficiency, and accurately read all types of 1D/2D barcode.
Tailored Compact Rugged designed for Mobile Workforce
Weighing only 250 grams, the C5000 is an ultra-compact, pocket-sized 5.5inch rugged mobile computer for real-time communications, monitoring, and data capture.And it enhances the industrial durable protection with features including IP68 dustproof, waterproof and 1.2 meters resistant to fall protection.

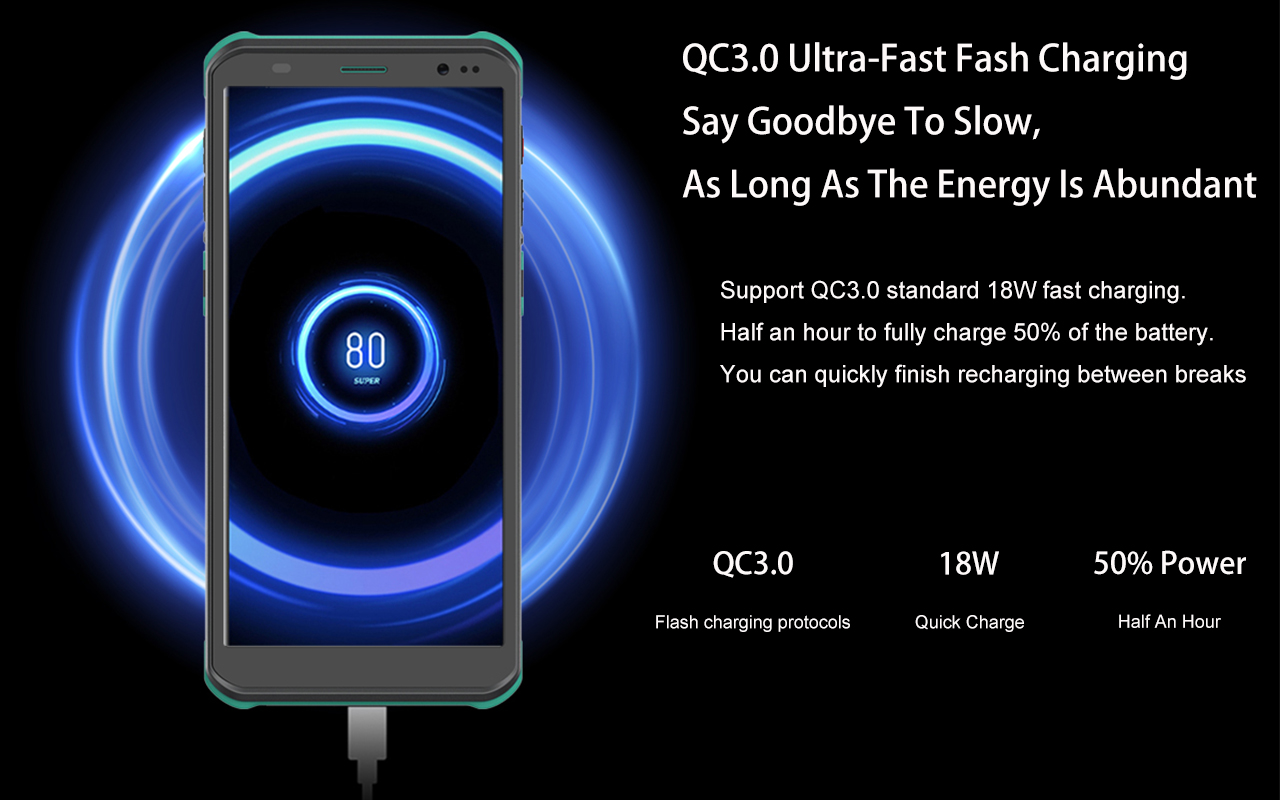

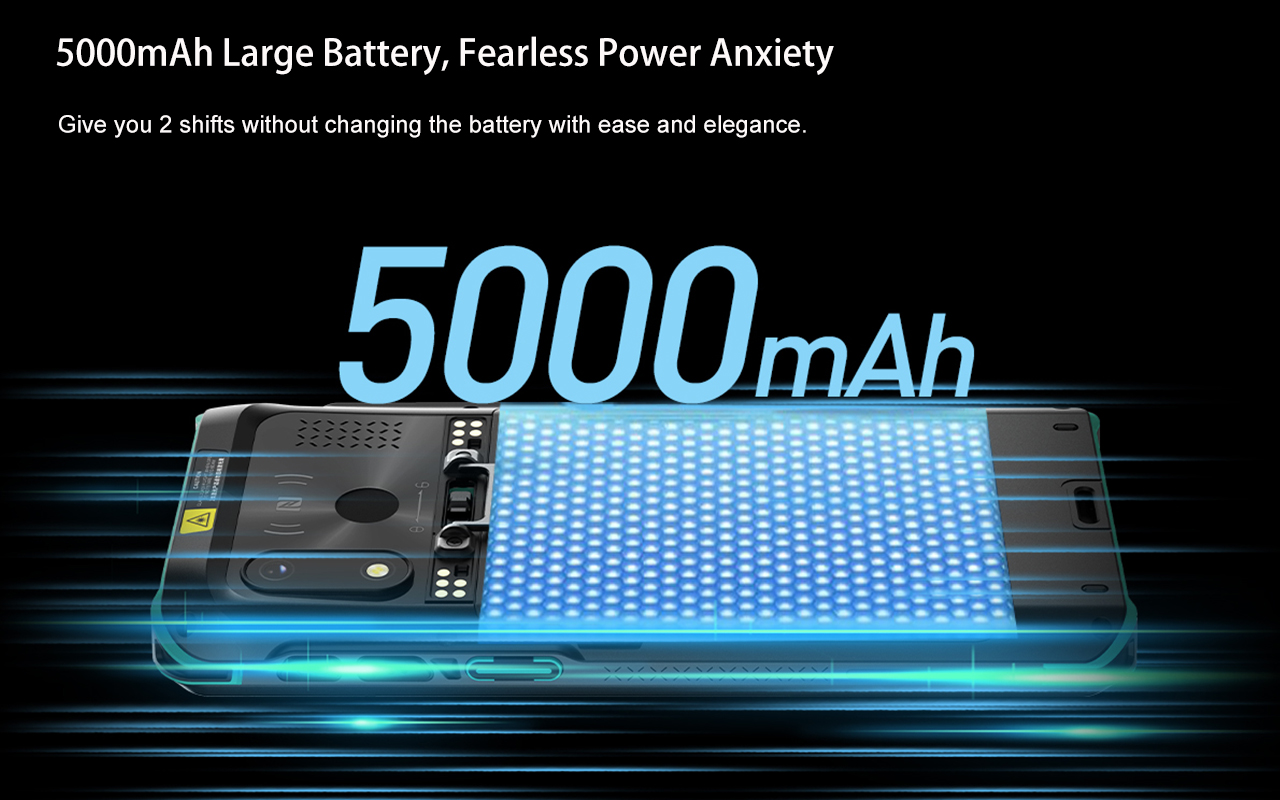

Long-Lasting Battery Life for filed working
Combination of 5000mAh battery and 18W fast charging makes the C5000 PDA scanner one of the most worry-free device in the market in terms of long operation hours; And with one-button ejection battery buckle design, battery replacement is as fast as lightning.
| Operation System | |
| OS | Android 11 |
| GMS certified | Support |
| CPU | 2.0GHz, MTK Octa-core Processor |
| Memory | 3 GB RAM / 32 GB Flash (4+64GB optional) |
| Languages support | English, Simplified Chinese, Traditional Chinese, Japanese,Spanish, German, French, Italian, Portuguese, Korean and multiple languages |
| Hardware specification | |
| Screen Size | 5.5inch, TFT-LCD(720×1440) touch screen with backlight |
| Buttons / Keypad | Programmable; Scan on each side; volume up/down; power; push-to-talk (PTT) |
| Camera | Front 5 megapixels (optional), rear 13 megapixels, with flash and auto focus function |
| Indicator Type | LED, Speaker, Vibrator |
| Battery | Rechargeable li-ion polymer, 3.85V,5000mAh |
| Symbologies | |
| 1D Barcodes | 1D : UPC/EAN/JAN, GS1 DataBar, Code 39, Code 128, Code 32, Code 93, Codabar/NW7, Interleaved 2 of 5, Matrix 2 of 5, MSI, Trioptic |
| 2D Barcodes | 2D : PDF417, MicroPDF417, Composite, RSS TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, U PostNet, US Planet, UK Postal, Australia Postal, Japan Postal, Dutch Postal. etc |
| HF RFID | High RF output power; ISO15693、ISO14443A/B、MIFARE：Mifare S50,Mifare S70,Mifare UltraLight, Mifare Pro, Mifare Desfire 、FeliCa Supported cards |
| Communication | |
| Bluetooth® | Bluetooth 4.1 ,Bluetooth Low Energy (BLE);secondary Bluetooth BLE beacon for finding lost (powered off) devices |
| WLAN | Wireless LAN 802.11a/b/g/n/ac, 2.4GHz and 5GHz Dual Frequency |
| WWAN | GSM: 850,900,1800,1900 MHzWCDMA: 850/1900/2100MHzLTE:FDD-LTE (B1/B2/B3/B4/B5/B7/B8/B12/B17/B20)TDD-LTE (B38/B39/B40/B41) |
| GPS | GPS (AGPs), Beidou navigation, error range ± 5m |
| I/O Interfaces | |
| USB | USB 3.1 (type-C) support USB OTG |
| POGO PIN | 2 Pin Rear connection：Trigger key signal4 Pin Bottom connection：Charging port 5V/3A,Support USB communication and OTG mode |
| SIM Slot | Dual nano SIM Slot |
| Expansion Slot | MicroSD, up to 256 GB |
| Audio | One speaker with Smart PA (95±3dB @ 10cm), One receiver, Dual noise-cancelling microphones |
| Enclosure | |
| Dimensions( W x H x D ) | 156mm x75mm x 14.5mm |
| Weight | 250g (with battery) |
| Durability | |
| Drop Specification | 1.2m, 1.5m with boot case ,MIL-STD 810G |
| Sealing | IP65 |
| Environmental | |
| Operating temperature | -20°C to 50°C |
| Storage temperature | - 20°C to 70°C (without battery) |
| Charging temperature | 0°C to 45°C |
| Relative Humidity | 5% ~ 95% (Non-Condensing) |
| What comes in the box | |
| The standard package contents | Adapter Charger ×1、USB Type-C cable ×1、Rechargeable Battery ×1、Hand Strap×1 |
| Optional Accessory | 4-Slot battery Charger、Single-Slot Charge+USB/Ethernet、5-Slot Share-Cradle Charge+Ethernet、Snap on Trigger Handle、OTG Cable |
