Q102
10 Inch cost-effective rugged industrial Tablet
● IP65 protect + 1.2M Drop | Enhanced durable housing | Octa core 2.0Ghz
● Android 11 security OS
● Rugged IP65 rated, and 1.2 m drop
● Powerful embedded 10000mAh battery
● Support 4G,Bluetooth , Wi-Fi
● 10.1 inch capacitive touch screen
● Cradle and hand strap for customer needs
Function
Introduction

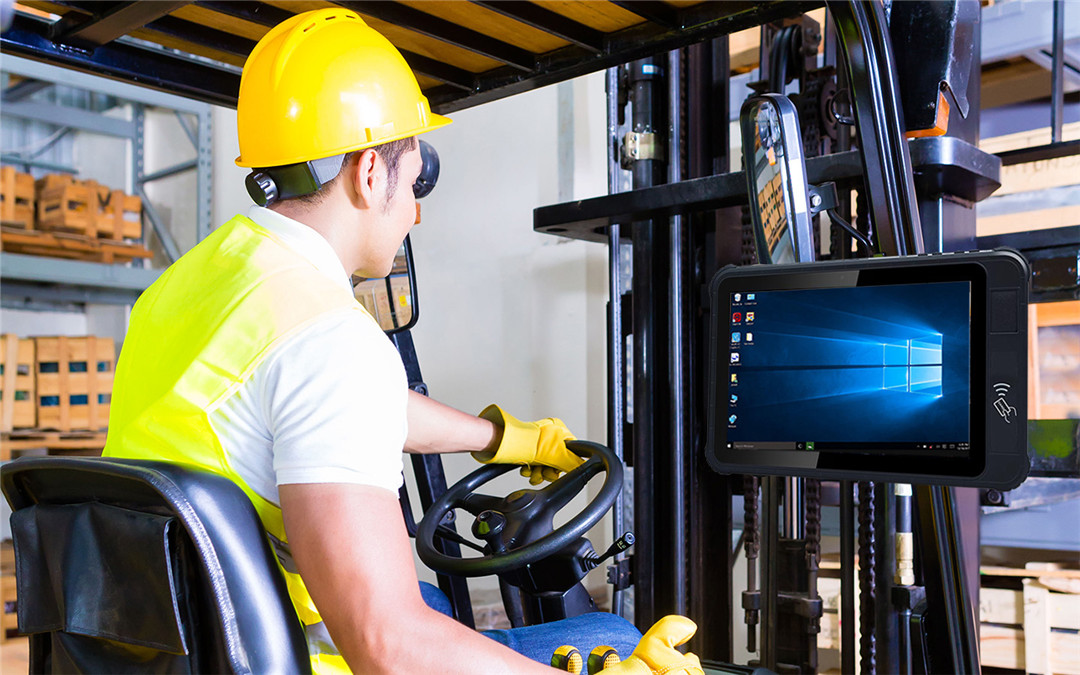

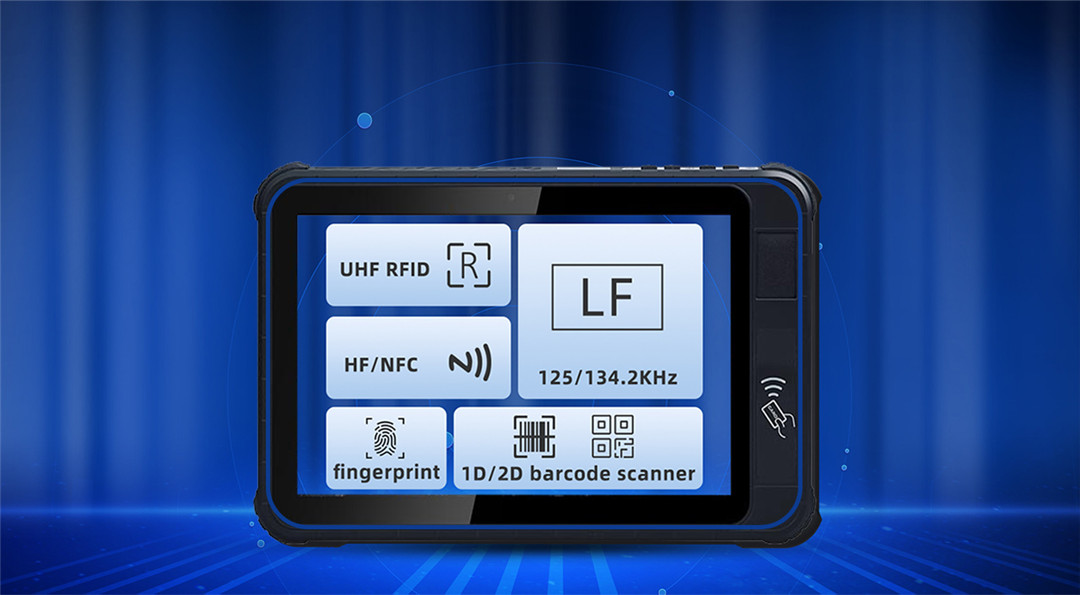

The Hosoton Q102 portable Rugged Tablet is designed for tough environments in industries like construction, transportation, field services, inventory management, and more. The 10inch Gorilla Glass touchscreen is scratch resistant and the tablet meet MIL-STD-810G standards, meaning it can withstand drops, shocks and machine vibrations. The Q102 has extensive connectivity with 4G LTE, WiFi, Bluetooth and GPS. It also quipped an optional infrared barcode scanner, RFID reader and fingerprint scanner embedded right into the unit.And the vehicle/forklift mount or docking station is available for special needs . Built in Type C ports provide versatility for easy access to high speed data transfer connections.
High ruggedness and durability for filed services

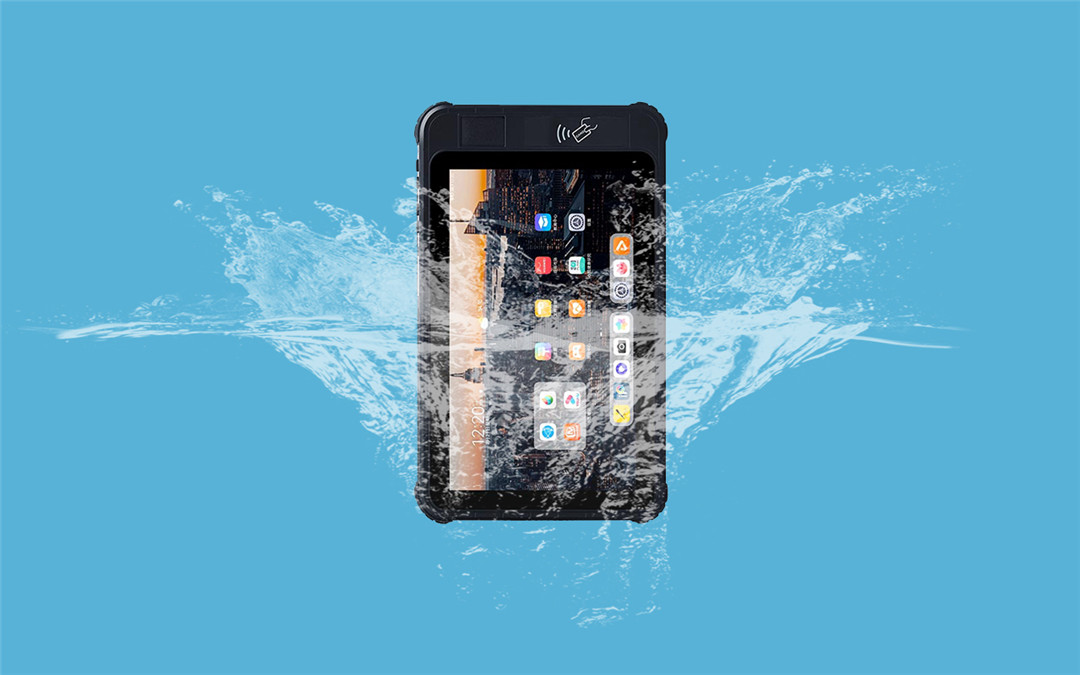

IP65 rating dust and water proof. Q102 comply with IEC sealing specification. it withstands exposure to dust and splashing liquids. And the device could survive falls from up to 1.2m.
Enhanced PSAM security level too meet financial tax standards
Optional PSAM card slots are available that supports the protocols of ISO7816 and various secure access modes and authorizations .It takes higher security level and cryptography performance to meet demanding applications.
Superior UHF RFID reading and writing for asset inventory
Q102 offer the professional UHF RFID module module possibility, which delivers excellent RFID reading and writing capabilities. Supporting protocols of EPC C1 GEN2 /ISO 18000-6C and various frequency bands, Q102 works with all kinds of RFID tags with high accuracy and speed .And it has been widely applied in asset management, apparel inventory management ,vehicle management ,toll road ,warehousing etc .
Accurately fingerprint recognition for biometric data comparison
Special Capacitive fingerprint scanner to adapt all kinds of industry requirements. Equipped a professional fingerprint scanner, which allow to collect and verify the biometric data quickly. When the device captures the fingerprint images, it will be converted ISO data format then submit it to the database of the server for comparison.
| Operation System | |
| OS | Android 11 |
| GMS certified | Support |
| CPU | 2.3 Ghz,MTK6765 processor Octa-Core |
| Memory | 3 GB RAM / 32 GB Flash (4+64GB optional) |
| Languages support | English, Simplified Chinese, Traditional Chinese, Japanese,Spanish, German, French, Italian, Portuguese, Korean and multiple languages |
| Hardware specification | |
| Screen Size | 10 inch color (800*1280 or 1920 x 1200) display |
| Buttons / Keypad | 6 Function Keys: Power key, volume +/-, return key, home key, menu key . |
| Camera | Front 5 megapixels , rear 13 megapixels, with flash and auto focus function |
| Indicator Type | LED, Speaker, Vibrator |
| Battery | Rechargeable li-ion polymer,10000mAh |
| Symbologies | |
| Bar code scanner | 1D 2D infrared barcode scan module optional |
| Fingerprint scanner | optional |
| HF RFID | Support HF/NFC Frequency 13.56MhzSupport: ISO 14443A&15693, NFC-IP1, NFC-IP2 |
| Communication | |
| Bluetooth® | Bluetooth®4.2 |
| WLAN | Wireless LAN 802.11a/b/g/n/ac, 2.4GHz and 5GHz Dual Frequency |
| WWAN | GSM: 850,900,1800,1900 MHzWCDMA: 850/1900/2100MHzLTE:FDD-LTE (B1/B2/B3/B4/B5/B7/B8/B12/B17/B20)TDD-LTE (B38/B39/B40/B41) |
| GPS | GPS (AGPs), Beidou navigation |
| I/O Interfaces | |
| USB | USB 3.1 (type-C) support USB OTG |
| POGO PIN | PogoPin bottom: Charging via cradle |
| SIM Slot | Dual nano SIM Slot |
| Expansion Slot | MicroSD, up to 256 GB |
| Audio | One speaker with Smart PA (95±3dB @ 10cm), One receiver, Dual noise-cancelling microphones |
| Enclosure | |
| Dimensions ( W x H x D ) | 305*186*18mm |
| Weight | 900g (with battery) |
| Durability | |
| Drop Specification | 1.2m, 1.5m with boot case ,MIL-STD 810G |
| Sealing | IP65 |
| Environmental | |
| Operating temperature | -20°C to 50°C |
| Storage temperature | - 20°C to 70°C (without battery) |
| Charging temperature | 0°C to 45°C |
| Relative Humidity | 5% ~ 95% (Non-Condensing) |
| What comes in the box | |
| The standard package contents | Q102 TerminalUSB Cable (Type C)Adaptor (Europe)Lithium Polymer Battery |
| Optional Accessory | Hand StrapCharging dockingVehicle cradle |
As a tailored industrial solution for filed workers under harsh working environment, it is widely used in Hazardous Field ,intelligent agriculture,military, logistics industry etc.
-
