Q804
8 Inch portable durable Tablet PC for industrial facilities
● IP65 protect + 1.2M Drop | built in 4G & WIFI | Quad core 2.0Ghz
● Android 11 customizable OS
● IP65 rated rugged, 1.2 m drop test
● Long-lasting embedded 8000mAh battery
● Built-in Ethernet port
● Integrated superior 2D barcode imaging technology
● Cradle and hand strap for customer needs
Function
Introduction
The Hosoton Q804 is the complementary model to the regular mini rugged tablet, which was designed for clients who pursue high cost performance. Since then, a lot has happened with the hardware in terms of processing performance and features.
The rugged tablet is extremely sturdy due to the enhanced structure housing. The IP65 rating makes the tablet PC highly resistant to dust and dirt. And come with newest Android 11 operating system and features an MTK6761, 2.4 GHz processor.
With the optional barcode scanner, the Hosoton Q804 can deal with any 1D or 2D barcodes from items, making it a great helpful for warehouse logistics and forklift workers. The rugged tablet also impresses in other industrial sectors with its stability and reliability. Beside, its performance and covers all important mobile communication channels with integrated LTE, Wi-Fi, GPS and Bluetooth.
Real-time Data Connectivity
Real-time data access to the right information is critical to mobile users. Q804 android tablet offers GPS, WLAN, BT and optional 4G LTE which enable users to get connect in the way that best suits their demands. With the embedded camera on the rear side, filed workers can capture photos, videos, documents instantly; or utilize the front camera for application such as user self video recording, or video communication.
Brilliant 8" Display with Ultimate Touch Capability
The 8 inch Q804 features projected capacitive (PCAP) multi-touch for the perfect user experience and allows user to switch work windows, taking snapshots, zooming in, and rotating objects easily. Also it takes the full advantages of the touch interface, which supports Rain, Glove, Stylus modes.
NFC available for card reader writer
Q804 NFC reader function supports ISO/IEC 18092 and ISO/IEC 21481 protocols near-filed communication and data transmission. It is high security, fast and stable connectivity, and low power consumption meet the requirements in user ID card authentication and e-payment .
Flexible Design for versatile Accessories

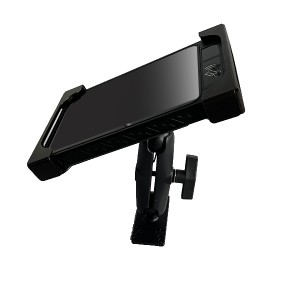

The Q804includes multiple I/O ports such as RJ45 Ethernet Port, USB3.0 port, SIM Card Reader, Micro TF Card Reader, 3.5mm Audio jack etc, and a various customizable accessories make it easy to fit different complex circumstances. It includes abundant docking solutions such as desktop cradle, vehicle docking station, as well as expansion module options (Fingerprint ,infrared scanner, NFC and RFID Reader).
| Operation System | |
| OS | Android 10 |
| GMS certified | Support |
| CPU | 2.5 Ghz,MTK6761 processor quad-Core |
| Memory | 4 GB RAM / 64 GB Flash (3+32GB optional) |
| Languages support | English, Simplified Chinese, Traditional Chinese, Japanese,Spanish, German, French, Italian, Portuguese, Korean and multiple languages |
| Hardware specification | |
| Screen Size | 8 inch color (800*1280) display |
| Touch Panel | multi-touch Capacitive Touch Screen |
| Camera | Front 5 megapixels, rear 13 megapixels, with flash and auto focus function |
| Indicator Type | LED, Speaker, Vibrator |
| Battery | Rechargeable li-ion polymer, 8000mAh |
| Symbologies | |
| HF RFID | Support HF/NFC Frequency 13.56MhzSupport: ISO 14443A&15693, NFC-IP1, NFC-IP2 |
| Bar code scanner | Optional |
| Fingerprint scanner | Optional |
| Communication | |
| Bluetooth® | Bluetooth®4.2 |
| WLAN | Wireless LAN 802.11a/b/g/n/ac, 2.4GHz and 5GHz Dual Frequency |
| WWAN | GSM: 850,900,1800,1900 MHzWCDMA: 850/1900/2100MHzLTE:FDD-LTE :B1/B2/B3/B4/B5/B7/B8/B12/B17/B20TDD-LTE :B38/B39/B40/B41 |
| GPS | GPS/BDS/Glonass, error range ± 5m |
| I/O Interfaces | |
| USB | USB TYPE-C*1 |
| POGO PIN | PogoPin bottom: Charging via cradle |
| SIM Slot | Single SIM Slot |
| Expansion Slot | MicroSD, up to 128GB |
| Audio | One speaker with Smart PA (95±3dB @ 10cm), One receiver, Dual noise-cancelling microphones |
| Enclosure | |
| Dimensions ( W x H x D ) | 273*173*23mm |
| Weight | 700g (with battery) |
| Durability | |
| Drop Specification | 1.2m, 1.5m with boot case ,MIL-STD 810G |
| Sealing | IP65 |
| Environmental | |
| Operating temperature | -20°C to 50°C |
| Storage temperature | - 20°C to 70°C (without battery) |
| Charging temperature | 0°C to 45°C |
| Relative Humidity | 5% ~ 95% (Non-Condensing) |
| What comes in the box | |
| The standard package contents | Q803 DeviceUSB CableAdaptor (Europe) |
| Optional Accessory | Hand StrapCharging dockingVehicle cradle |
With the technology rapidly developed, the Q803 portable rugged tablet has been used in Hazardous Field, intelligent agriculture, military, logistics industry etc.
