S80
4G handheld Android ticketing POS printer
● Latest Android 11 programmable OS
● Embedded 58mm high speed thermal printer
● NFC and QR Code payment methods
● 2+16 GB memory
● 5.5” IPS LCD 1280 x 720 ，capacitive Five-Point Touch
● Long battery working time >8 hours
Function
Introduction
S80 is a 5.5inch non-banking mobile POS printer based on Android 11. It takes an 80mm/s fast thermal printer with the advantages of low noise and low power consumption.The large capacity battery ensures continuous operations through an entire shift so you can process daily work efficiently.With the digital business developing rapidly ,the smart POS systems is widely applied in Queuing management, ordering, online order taking, checkout or loyalty management.

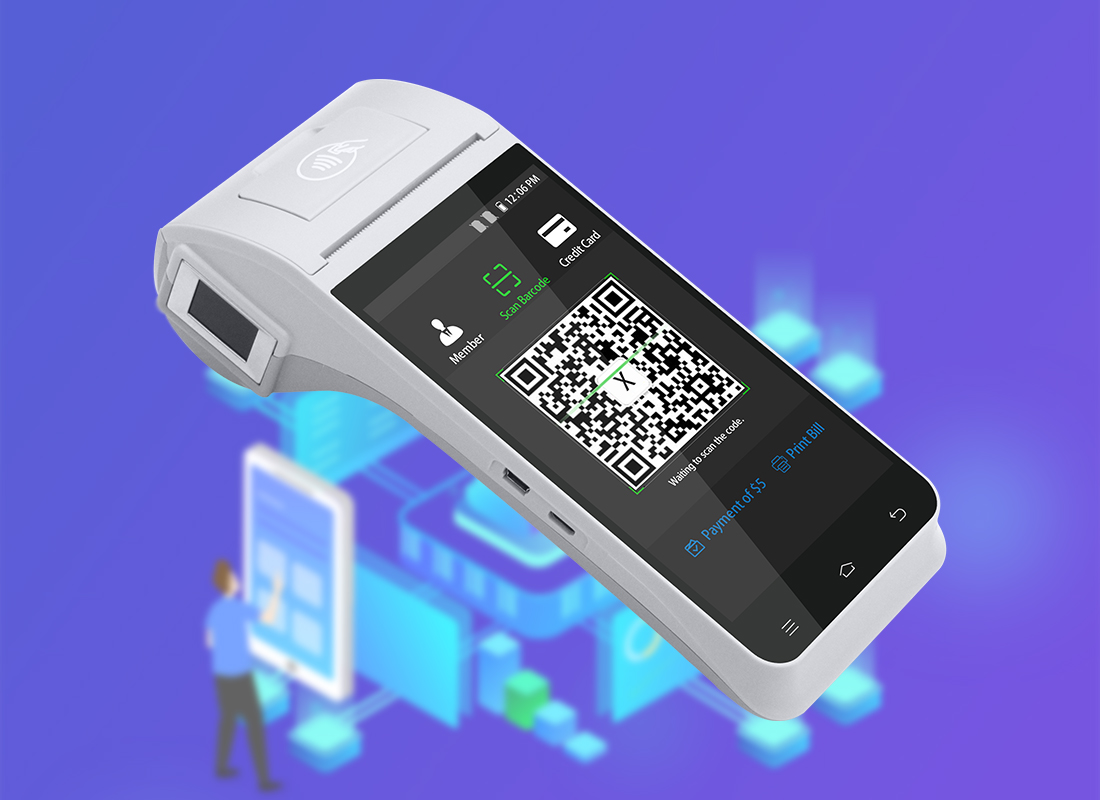

Quickly QR-Code payment experience

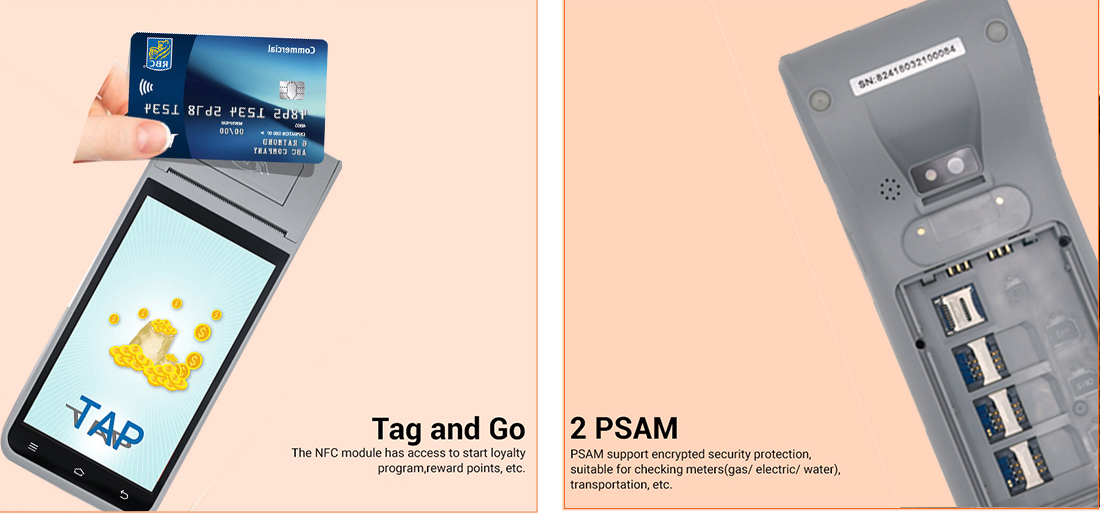

Tailored POS printer for the pioneer mobile payment , S80 equipped the NFC card reader,barcode scanner and adopt high speed thermal printer .It delivers efficient and simplified business experience for various vertical applications ,includes the retail, restaurants, supermarket, and delivery food .

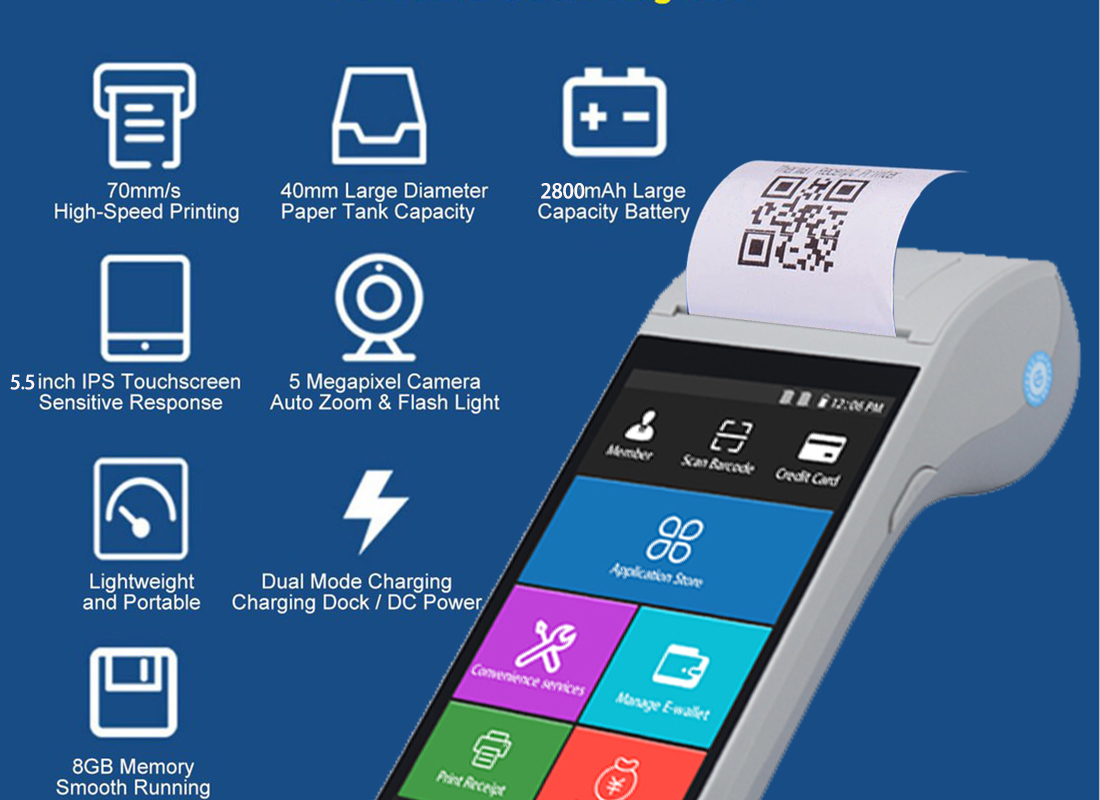

Clearer and Faster Printing performance
Dual printing mode for ticket and label printing, with advanced label position auto-detection algorithm for a more accurate printing.

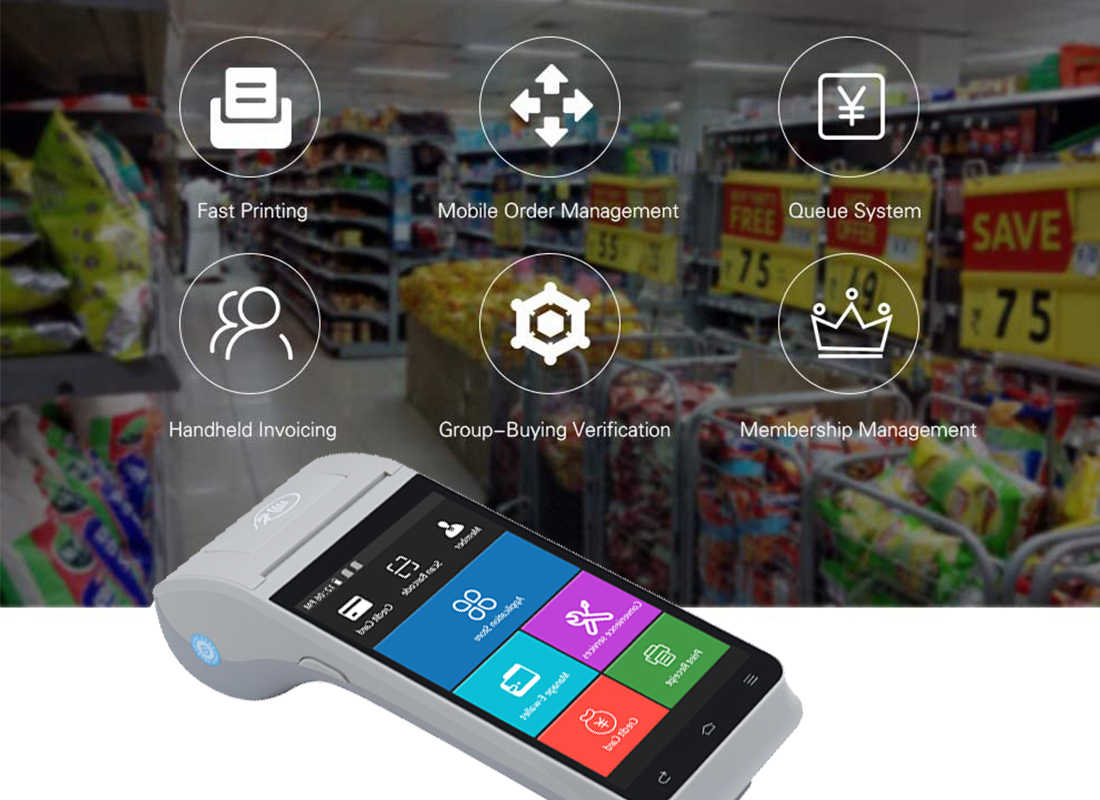

Rapidly increasing demand in digital service
Today digital transformation of business is increasingly important, S80 delivers a new possibility in a variety of industrial scenarios, such as online food ordering and payment, logistic delivery, queuing, mobile top-up, utilities, lotteries, member points, parking charges, etc

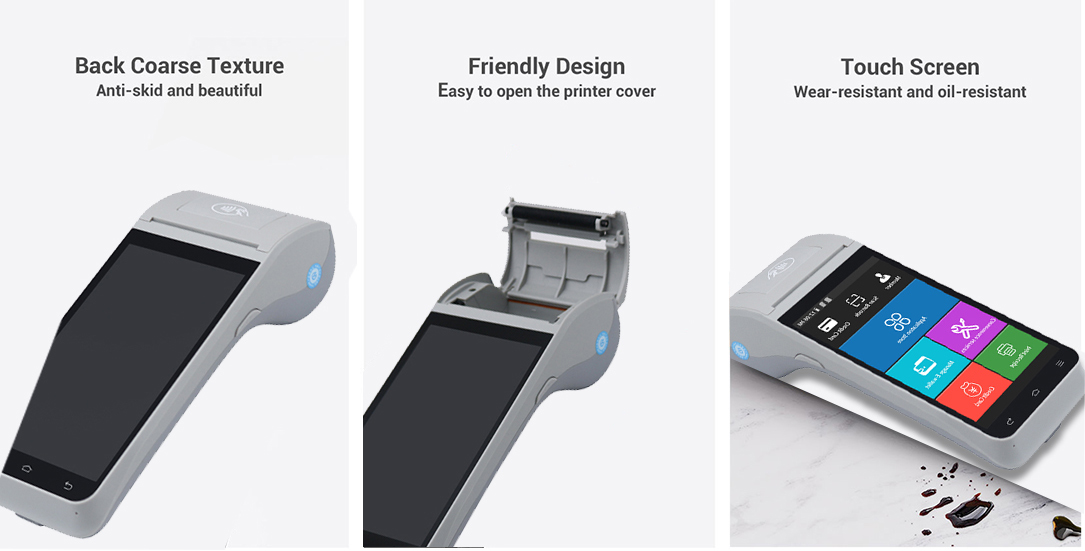

Premium ergonomic design for handheld Scenario
Not limited to takeaway ordering, S80 POS printer embedded multi-functional modules for more special demands, such as Code payment, cash payment, biometric payment and contactless payment .
The Full range of wireless Connectivity
Besides stable 4G/3G/2G network, Wi-Fi and Bluetooth are also easy to access. S80 will performance perfectly in different environments no matter what kind of communication method you're using.
Big capacity battery for whole day work
Continuously work for 12 hours even in most demanding situations, and still print receipts at high speed when the battery is low.
Extended interfaces and fiscal compliance
To service industry specific requirements, I2C,UART and USB hardware interfaces have been reserved. An application module card slot, protected by a dedicated case is also embedded to comply with special fiscal regulations.
*Only Industry Tailored Version supports.
| Operation System | |
| OS | Android 11 |
| GMS certified | Support |
| CPU | Quad core processor ，up to 1.4Ghz |
| Memory | 2+16 GB |
| Languages support | English, Simplified Chinese, Traditional Chinese, Japanese,Spanish, German, French, Italian, Portuguese, Korean and multiple languages |
| Hardware specification | |
| Screen Size | 5.5″ IPS Display, 1280×720 pixels ,multi-point Capacitive Touch screen |
| Buttons / Keypad | ON/OFF button |
| Card readers | Contactless Card , Support ISO / IEC 14443 A&B，Mifare，felica card conform to EMV / PBOC PAYPASS standard |
| Camera | rear 5 megapixels, with flash and auto focus function |
| Printer | Built in fast-speed thermal printerPaper roll diameter: 40mmPaper width: 58mm |
| Indicator Type | LED, Speaker, Vibrator |
| Battery | 7.4V, 2800mAh ,Rechargable Lithium battery |
| Symbologies | |
| Bar code scanner | 1D 2D code scanner via camera |
| Fingerprint | Optional |
| I/O Interfaces | |
| USB | USB type-C *1, Micro USB *1 |
| POGO PIN | Pogo Pin bottom: Charging via cradle |
| SIM Slot | Dual SIM Slots |
| Expansion Slot | Micro SD, up to 128 GB |
| Audio | 3.5mm Audio Jack |
| Enclosure | |
| Dimensions( W x H x D ) | 199.75mm x 83mm x 57.5mm |
| Weight | 450g (with battery) |
| Durability | |
| Drop Specification | 1.2m |
| Sealing | IP54 |
| Environmental | |
| Operating temperature | -20°C to 50°C |
| Storage temperature | - 20°C to 70°C (without battery) |
| Charging temperature | 0°C to 45°C |
| Relative Humidity | 5% ~ 95% (Non-Condensing) |
| What comes in the box | |
| The standard package contents | S80 TerminalUSB Cable (Type C)Adaptor (Europe)Lithium Polymer BatteryPrinting paper |
| Optional Accessory | Hand StrapCharging dockingSilicon case |
Specially designed for field workers under tough working environment both indoors and outdoors. Good choice for fleet management ,warehousing, manufacturing, logistics industry etc.
