S90
4G mobile Android rugged POS system
● Android 8.1 with Qualcomm Quad-core + Secure CPU
● Magstripe, chip card, NFC ,QR code payment
● Zebra 2D scanner optional
● Long battery working time >8 hours
● PCl &EMV approved
Function
Introduction

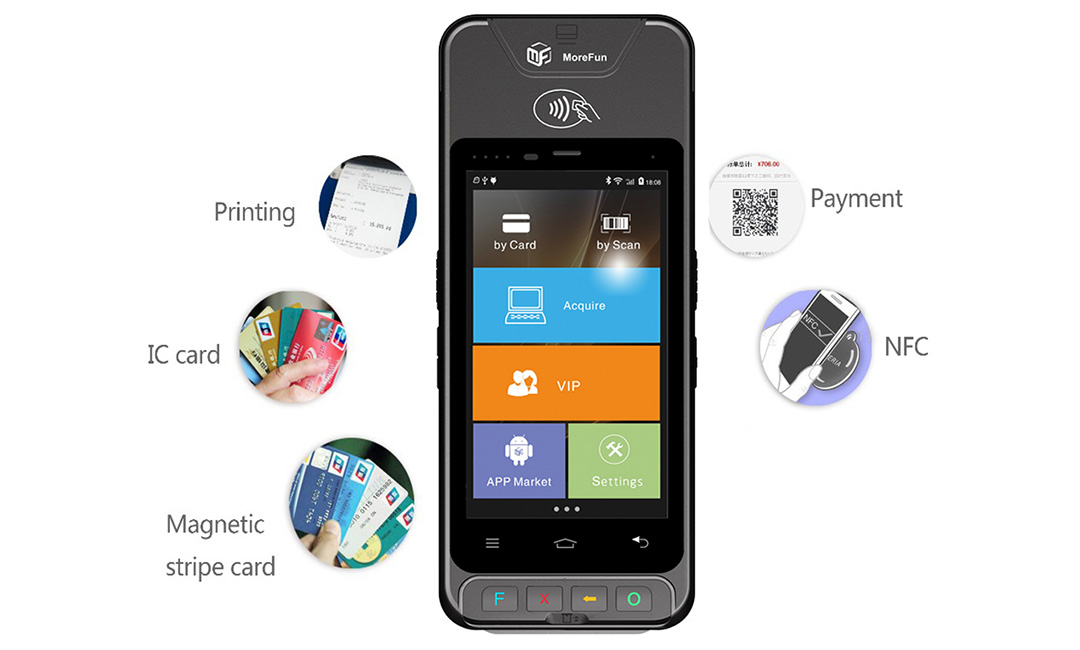

Impeccable quality and design make S90 irresistible. It delivers strong performance through the Android 8.0 OS and Qualcomm high-speed processor, and integrated with MSR, EMV chip& pin,NFC card readers, embedded 2D barcode scanning engine, 4G/WiFi/Bluetooth connectivities, makes the payment faster and more convenient .Besides ,the innovative design combines the arts and pioneer protection technology.
Tailored industrial design for harsh environments
Engineered to work in outdoors or indoors, S90 is rugged enough to drop from 1.2 meters and adopt sunlight viewable display.It can improve service quality of various vertical applications within the retail, merchants, bank, and field service industries.
Make payments simple and fast for street vendors

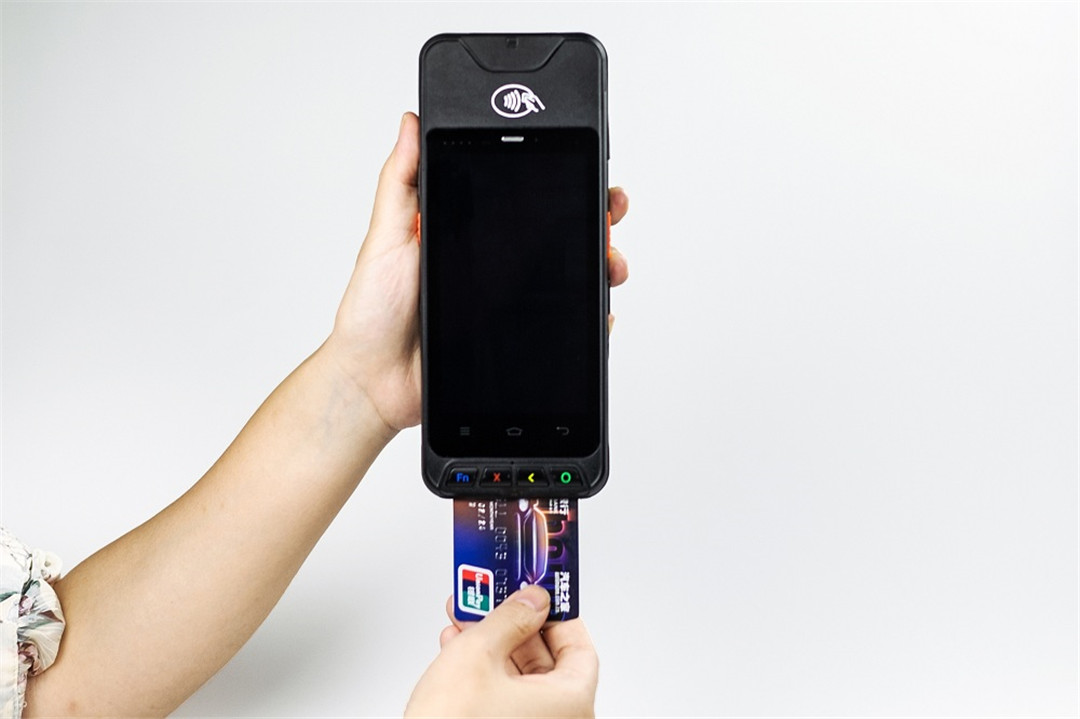

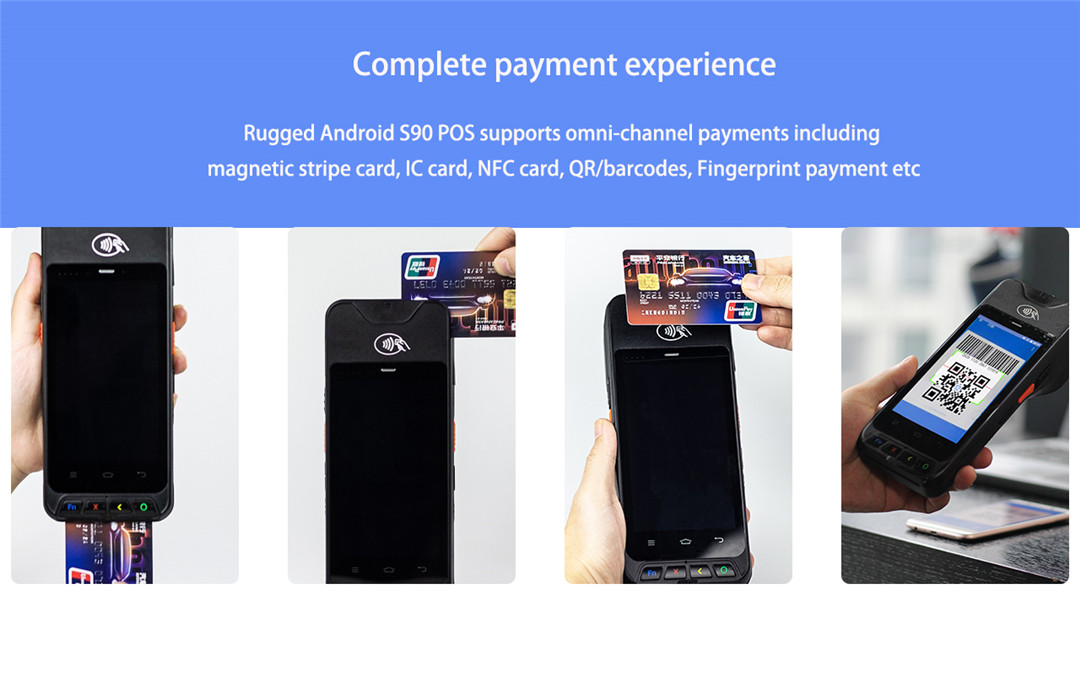

S90 mobile POS system supports all kinds of bank cards payment ,and covering main electronic payment methods such as NFC Payment, Apple Pay, Samsung Pay, Alipay, WeChat Pay, and Quick Pass.
Comprehensive international card payment certification

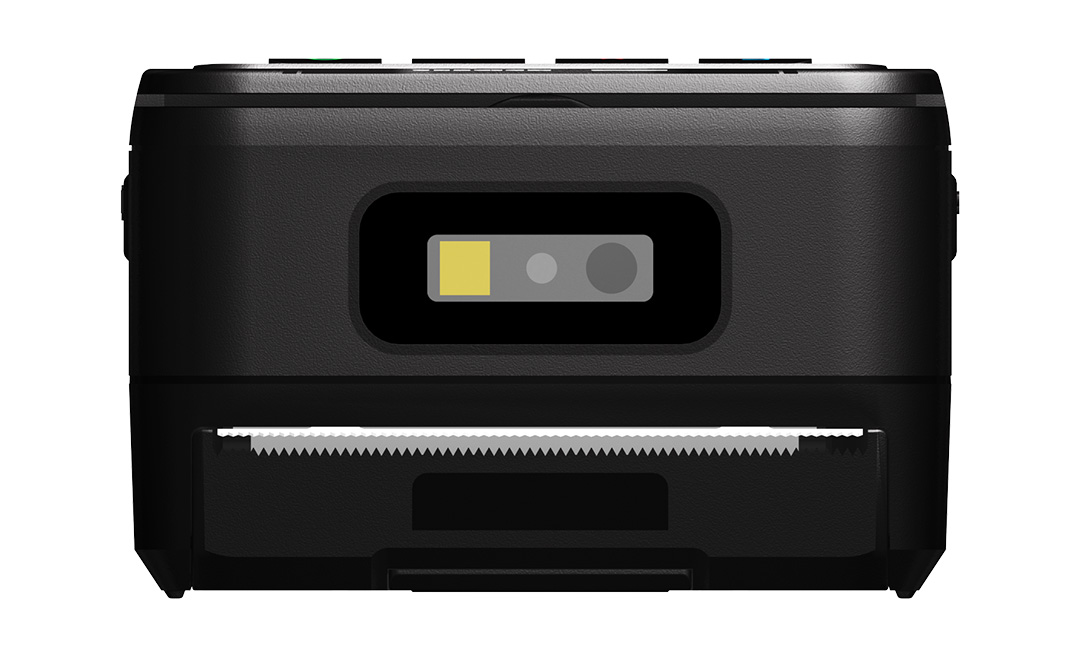

Embedded high Speed Thermal Printer for ticketing
Advanced high-pressure printing technology is applied to the thermal printer of S90, printed text and graphics are clearer. The printing speed is increased to 70 mm per second.
Real-Time Data and Wireless Connectivity for mobile task
Featuring Bluetooth® 4, wireless dual bands with fast roaming and 4G connectivity for real-time data collection, user can submit the payment requests and instantly connect to the backend system. The S90 delivers a seamlessly payment experience and improves productivity for various small merchants.
Powerful optimized power system

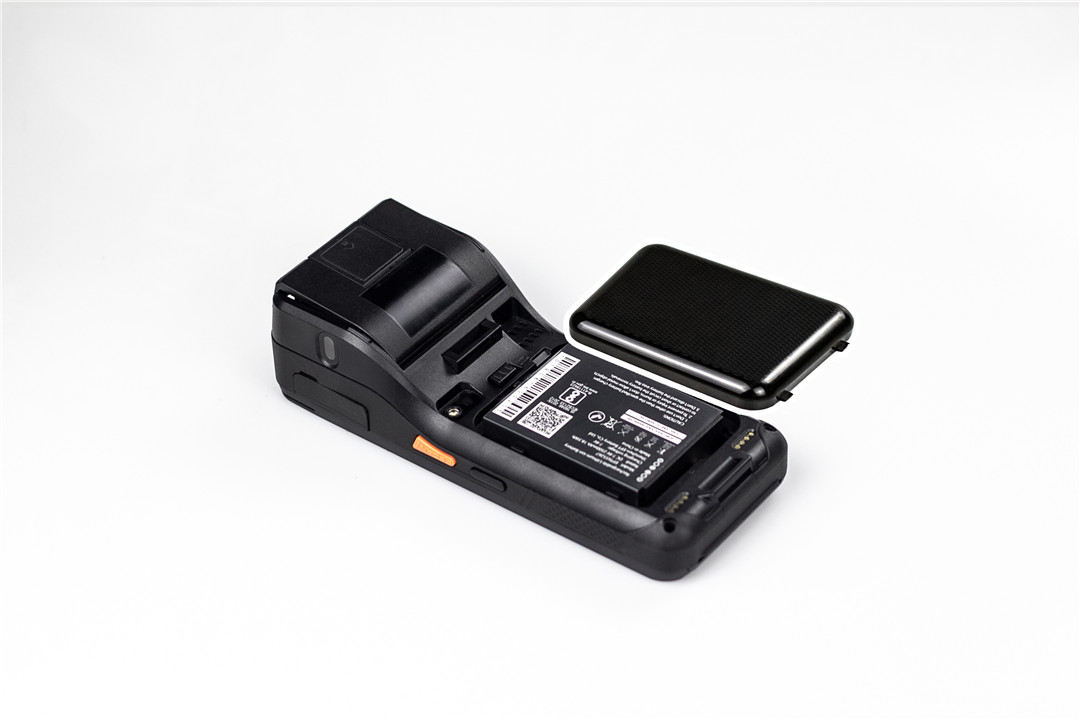

With a 5000-mAh large-capacity removable battery and an intelligent power management system, S90 can continuous working up to 8-10h in daily conditions .
Versatile optional modules for industries application
The S90 android POS is equipped with optional accessories to reach different client demands. Such as desktop cradle and hand strap,as well as expansion module options (Infrared Zebra barcode scanner,Biometric fingerprint scanner).
| Operation System | |
| OS | Android 8.1 |
| GMS certified | Support |
| CPU | Qualcomm quad core processor with special secure CPU |
| Memory | 1 GB RAM / 8 GB Flash (2+16GB optional) |
| Languages support | English, Simplified Chinese, Traditional Chinese, Japanese,Spanish, German, French, Italian, Portuguese, Korean and multiple languages |
| Hardware specification | |
| Screen Size | 5.0″ IPS Display, 1280×720 pixels ,multi-point Capacitive Touchscreen |
| Buttons / Keypad | Front: User define button ,Cancel button ,Confirm button,Clear button ;Side : SCAN button x 2 ,Volume key ,ON/OFF button |
| Card readers | Magstripe Card ,Contact chip Card ,Contactless Card |
| Camera | rear 5 megapixels, with flash and auto focus function |
| Printer | Built in fast-speed thermal printerPaper roll diameter: 40mmPaper width: 58mm |
| Indicator Type | LED, Speaker, Vibrator |
| Battery | 7.4V, 2*2500mAh (7500 mAh optional) ,Rechargable Lithium battery |
| Symbologies | |
| Bar code scanner (optional) | Zebra barcode scan module |
| Fingerprint | Optional |
| Communication | |
| Bluetooth® | Bluetooth®4.2 |
| WLAN | Wireless LAN 802.11a/b/g/n/ac, 2.4GHz and 5GHz Dual Frequency |
| WWAN | GSM: 850,900,1800,1900 MHzWCDMA: 850/1900/2100MHzLTE: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20TDD-LTE :B38/B39/B40/B41 |
| GPS | A-GPS, GNSS, BeiDou satellite navigation |
| I/O Interfaces | |
| USB | 1 * Micro USB (support USB 2.0 and OTG) |
| POGO PIN | Pogo Pin bottom: Charging via cradle |
| SIM Slot | SIM*2 ,PSAM *2 |
| Expansion Slot | Micro SD, up to 128 GB |
| Audio | 3.5mm Audio Jack |
| Enclosure | |
| Dimensions ( W x H x D ) | 201.1 x 82.7 x 52.9 mm |
| Weight | 450g (with battery) |
| Environmental | |
| Operating temperature | -20°C to 50°C |
| Storage temperature | - 20°C to 70°C (without battery) |
| Charging temperature | 0°C to 45°C |
| Relative Humidity | 5% ~ 95% (Non-Condensing) |
| What comes in the box | |
| The standard package contents | S90 TerminalUSB Cable (Type C)Adaptor (Europe)Lithium Polymer BatteryPrinting paper |
| Optional Accessory | Hand StrapCharging docking |
Specially designed for field workers under tough working environment both indoors and outdoors. Good choice for fleet management ,warehousing, manufacturing, logistics industry etc.
