Q10
Waterproof Rugged Windows Tablet PC With 1000nits High Brightness Display
● IP67 protect + 1.2M Drop | Durable display with Gorilla glass III | Intel CPU
● Windows 10/11 customizable OS
● Rugged: IP67 rated, and 1.2 m drop

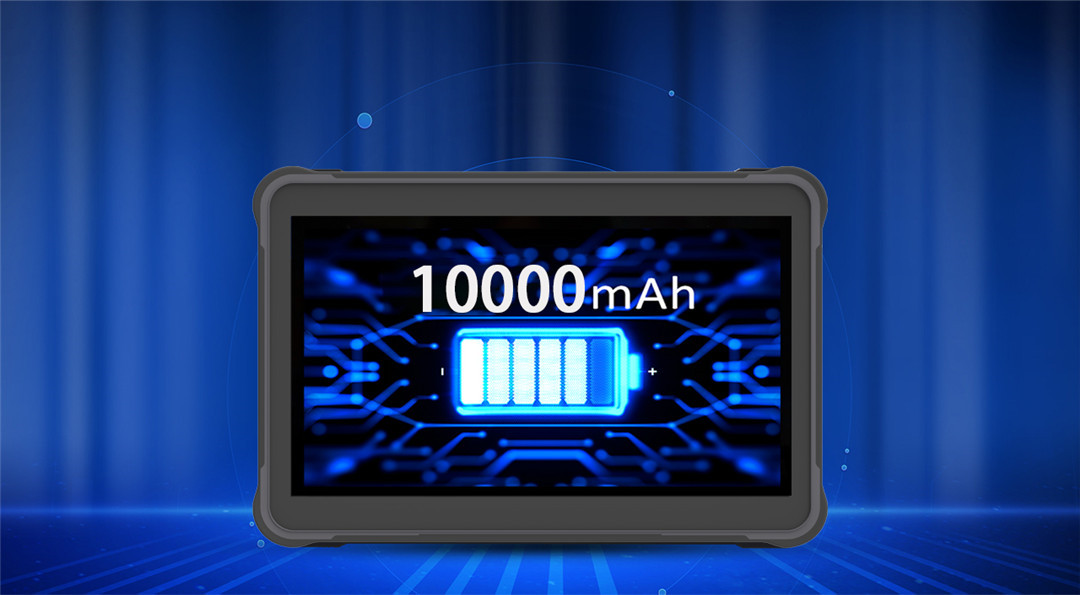

● Long-lasting embedded 10000mAh battery
● Support 4G,Bluetooth , Wi-Fi
● Thin & lightweight design for easy portability
● Fanless & low power consumption design
● Cradle and hand strap for customer needs
Function
Introduction
The Q10 Windows rugged computer come with the large 10.1" sunlight-readable FHD display allows for a premium viewing experience no matter where your work occurs. With powerful CPU configurations, the design of IP67 protection, multiple wireless connectivity options, and versatile data capture modules, every task can be completed reliably.
And Q10 is built to be out in the field in rugged environments such a manufacturing floors, construction sites, automotive repair shops, assembly lines, or in agriculture. Take the tablet with you wherever you go and stay connected to customers, back-of-house staff, your ERP, or your inventory management system while having high performance computing in the palm of your hands.
High Performance with Intel's CPU
The Q10 equipped with Intel® Atom™ x5-Z8350 (Cherry Trail) processor provides the enough performance to run multimedia applications smoothly and without interference. The Q10 supports the latest Windows® 10 IoT Enterprise operating system to fulfill increasing industrial applications requirements and offer an alternative solution for those between general consumer-grade and extremely rugged solutions.

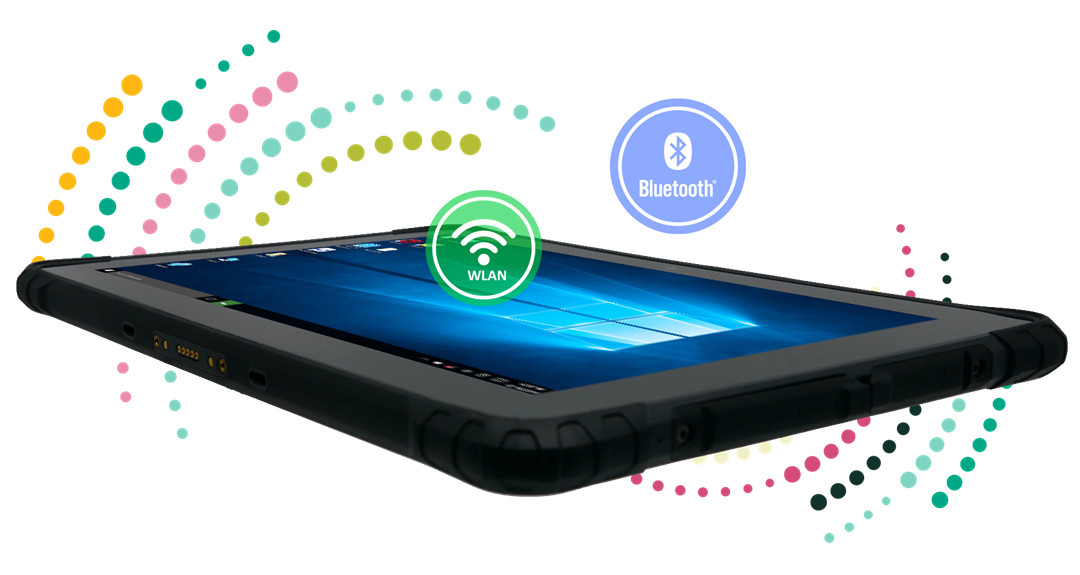

Real-Time Data and Wireless Connectivity
Real-time data access to the correct information is crucial for mobile workers. The Q10 offers GPS, GLONASS, WLAN, BT, and optional 4G LTE to enable robust communications anytime and anywhere. With a built-in 13MP Auto-focus Camera w/ LED Flash on the rear side, users can capture photos, videos, documents instantly or utilize the front 5.0 MP camera for applications such as self-video recording or video communications.

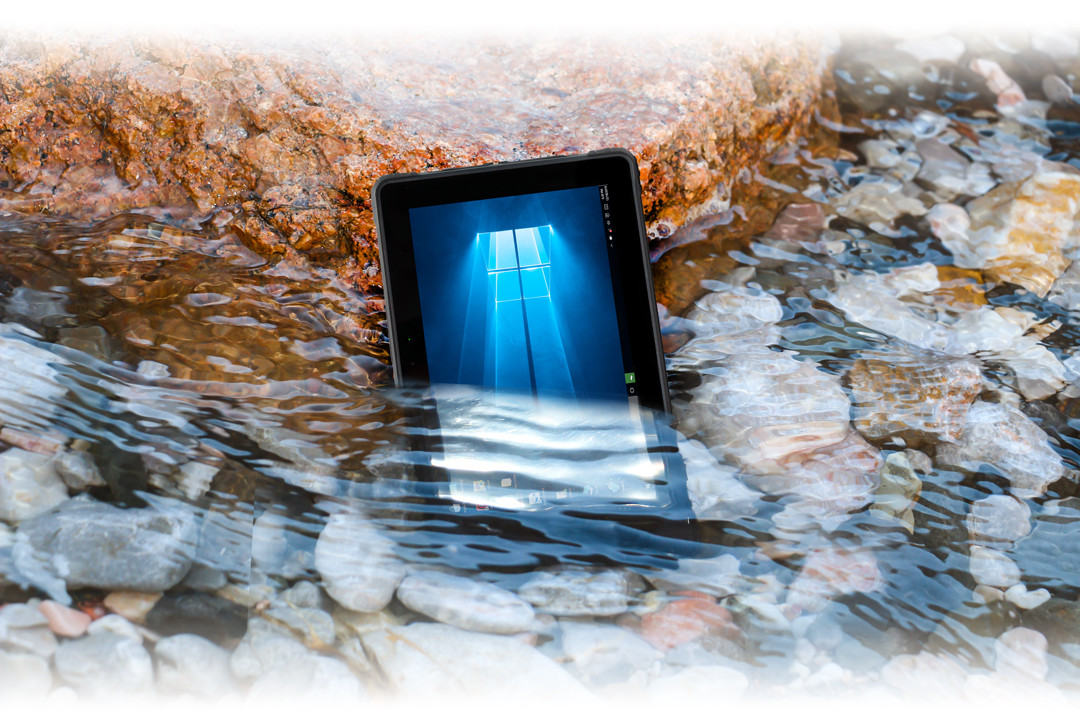

Rugged Design in Mobile Form Factor
The Q10 rugged tablet is designed to be tough and rugged, withstanding shock, vibration, and drop up to 4 ft. according to military standard MIL-STD-810H for operations in some of the harshest environments. Damage and scratch, corning Gorilla glass provide a extra layer of protection to Q10 tablet .

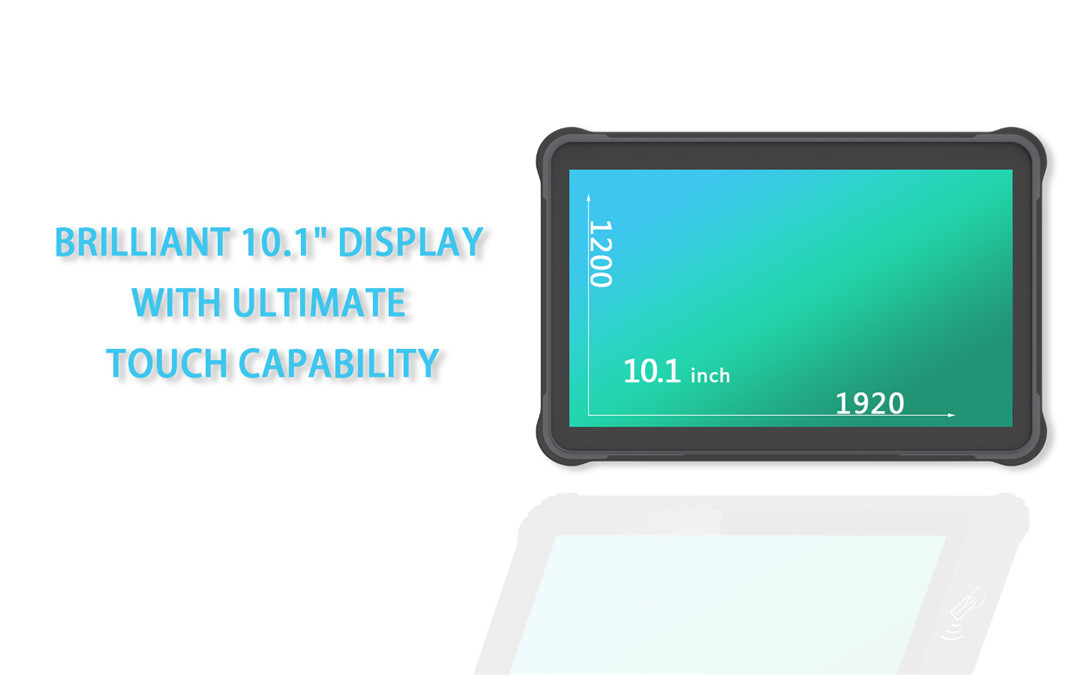

Brilliant 10.1" Display with Ultimate Touch Capability
The 10.1" series features projected capacitive (PCAP) multi-touch for the best user experience and allows switching windows, taking snapshots, zooming in, and rotating objects easily to take full advantage of the touch interface. Supports Rain, Glove, Stylus modes.
Versatile Accessories for Industry Applications
The high performance tablet PC comes standard with multiple data collection features, including USB 3.2 ports, ethernet RJ45 port, serial RS-232 port, high-definition camera, location GPS. The charging system is distinct to the interfaces by one DC-In power jack. In addition, we offer a variety of docking station able to charge the tablet: desktop cradle, wall-mount cradle, or in-vehicle mounting.
This tablet also has additional options for a Fingerprint Reader, NFC, 1D/2D barcode scanner, Serial port, Ethernet port, or an extra USB port along with a variety of docking stations on the desk or in the vehicle.
| Operation System | |
| OS | Windows 10/11 home/pro/iot |
| CPU | Intel cherry trail Z8350 (N5100/core i5/i7 optional),1.44Ghz-1.92GHz |
| Memory | 4 GB RAM / 64 GB Flash (8GB/16GB+128GB/256GB/512GB optional) |
| Languages support | English, Simplified Chinese, Traditional Chinese, Japanese,Spanish, German, French, Italian, Portuguese, Korean and multiple languages |
| Hardware specification | |
| Screen Size | 10.1 inch 1920 x 1200 display，up to 500 nits (1000nits optional) |
| Touch Panel | Gorilla glass III with 10 points Capacitive Touch Screen |
| Buttons / Keypad | Power key, volume +/- |
| Camera | Front 5 megapixels, rear 13 megapixels, with flash and auto focus function |
| Indicator Type | LED, Speaker, Vibrator |
| Battery | Rechargeable li-ion polymer, 10000mAh |
| Symbologies | |
| HF RFID | Support HF/NFC Frequency 13.56MhzISO/IEC14443，ISO/IEC15693，MIFARE，FelicaRead distance：3-5cm，Front |
| UHF | Optional |
| Fingerprint scanner | Optional |
| Bar code scanner | Optional |
| High precision GNSS module (optional) | Sub meter level，positioning accuracy：0.25-1 seconds，Support Beidou、GPS、GLONASS |
| Communication | |
| Bluetooth® | Bluetooth®4.2 |
| WLAN | Wireless LAN 802.11a/b/g/n/ac, 2.4GHz and 5GHz Dual Frequency |
| WWAN | GSM: 850,900,1800,1900 MHz |
| WCDMA: 850/1900/2100MHz | |
| LTE:B1/B2/B3/B4/B5/B7/B8/B28 | |
| TDD-LTE :B40 | |
| GPS | GPS/BDS/Glonass, error range ± 5m |

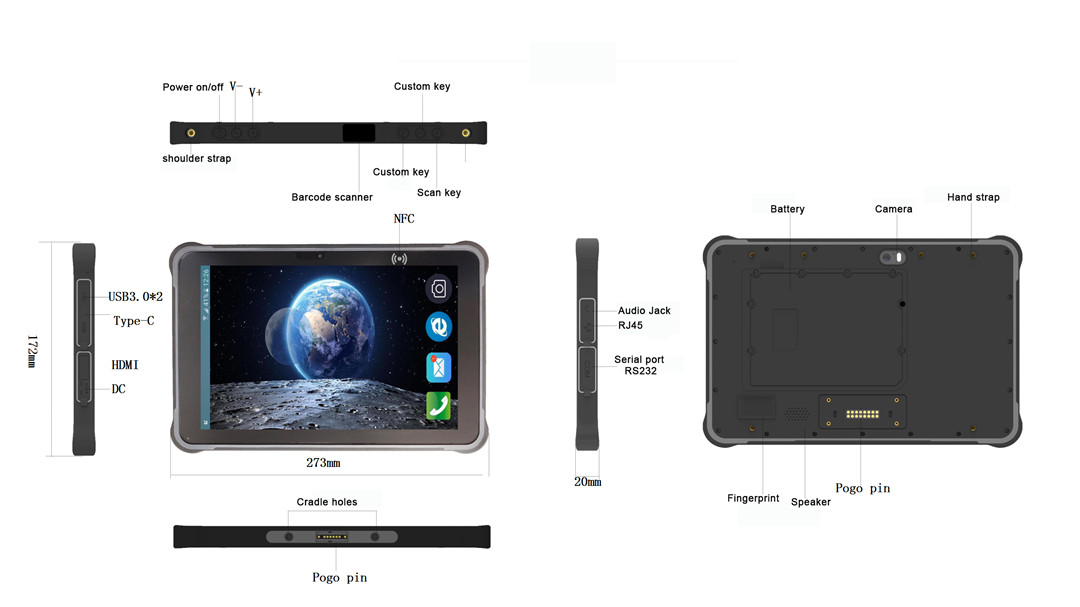

| I/O Interfaces | |
| USB | USB TYPE-A*2 ,Micro USB*1 |
| POGO PIN | Back 16PIN POGO PIN *1Bottom 8PIN POGOPIN *1 |
| SIM Slot | Single SIM Slot |
| Expansion Slot | MicroSD, up to 256 GB |
| RJ 45 | 10/100/1000M x1 |
| DB9 RE232 | 9-pin serial port x1 |
| HDMI | Support |
| Power | DC 5V 3A ∮3.5mm power interface x1 |
| Enclosure | |
| Dimensions ( W x H x D ) | 275*178*18mm |
| Weight | 1050g (with battery) |
| Durability | |
| Drop Specification | 1.2m, 1.5m with boot case ,MIL-STD 810G |
| Sealing | IP68 |
| Environmental | |
| Operating temperature | -20°C to 50°C |
| Storage temperature | - 20°C to 70°C (without battery) |
| Charging temperature | 0°C to 45°C |
| Relative Humidity | 5% ~ 95% (Non-Condensing) |
| What comes in the box | |
| The standard package contents | Q10 Device |
| USB Cable | |
| Adaptor (Europe) | |
| Optional Accessory | Hand Strap |
| Charging docking | |
| Vehicle mount | |
It is perfect solution for outdoors workers under harsh working environment. Widely used in Hazardous Field ,intelligent agriculture,military, logistics industry etc.
